KOBRA 270 TS S4 3.8mm Strip Cut Shredder (99.830)
Straight-Cut 110 L Professional Touch Screen Shredder for medium office use with continuous duty motor and heavy duty chain drive with steel gears – 2 sets of cutting knives.
£685.00 + vat (£822.00 inc vat)
Specifications
- 24 sheets per pass / 1000 sheets per day
- Shreds Paper, Staples, Paperclips, CDs/DVDs & Credit Cards
- 3.8mm Strip Cut / DIN Security Level P-2 for non-sensitive internal documents. More Info.
- 270mm Entry Throat (A4 and A3)
- Bin Capacity: 1100 sheets - 110 litres
- Dimensions (WxDxH): 530x430x880mm
Jump to: Full Product Info
PDF Data Sheet
Models in this Range
Product Details
Straight-Cut 110 L Professional Touch Screen Shredder for medium office use with continuous duty motor and heavy duty chain drive with steel gears – 2 sets of cutting knives.

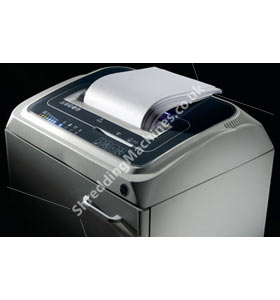

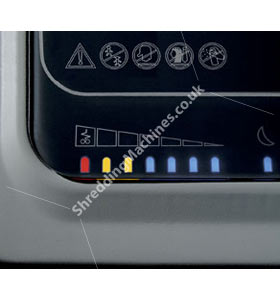

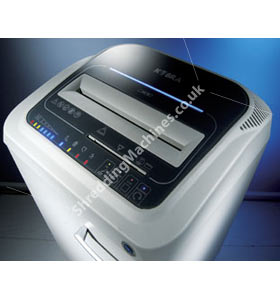

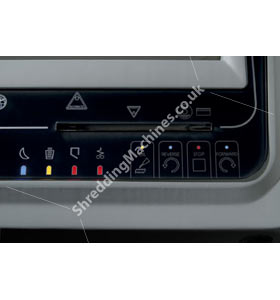

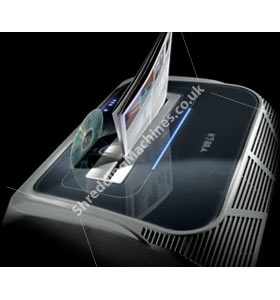

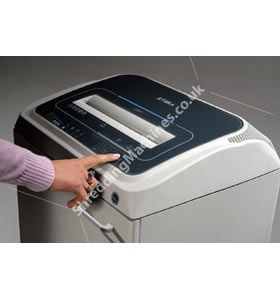

The KOBRA 270 TS S4 is a 3.8mm Strip Cut Touch Screen shredder that comes with touch screen technology, an electronic power control system and a 270mm wide entry throat. All functions are activated by simply touching the required command on the touch screen. The touch screen also shows the current status of the machine including if it is standby mode. The KOBRA 270 TS S4 model features 2 separate sets of cutting blades and collection bags; one for paper and one for CD's/DVD's and credit cards. For the shredding of transparent materials like acetate and microform, simply keep your finger on the Forward control for 5 seconds and the machine will run for 30 seconds.

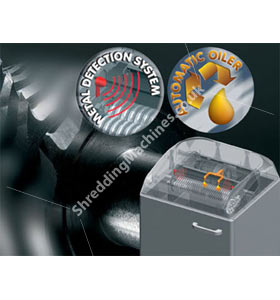

The KOBRA 270 TS S4 Touch Screen machine features a warning light when the cutting knives need to be oiled. Equipped with an environmentally friendly Energy smart system™, the shredder goes into standby mode after 8 seconds of not being used and is restarted by inserting material into the machine. This model automatically disconnects from the mains power supply after being idle for 4 hours.

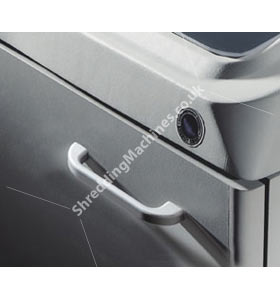

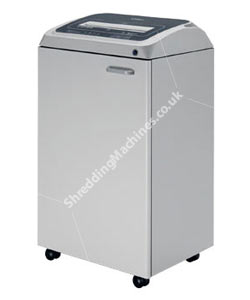

The KOBRA 270 TS S4 shredder has 24 hour continuous duty motors, an automatic Start/Stop function a stand-by function which cuts all power to the unit, a heavy duty chain drive with steel gears and are 100% jam proof. All versions will automatically stop when the collection bag is full or the door is opened and will display a light to show which has occurred. The cabinet is also mounted on casters for ease of movement around the office.
Please note that 2 High Security - Level 5 and 6 versions (270 TS HS and 270 TS HS-6) are also available for Government and Military type applications. See our High Security section for more details.
Warranty Terms
For more information regarding the warranty please read this document for more info.
DIN Security Levels
Energy Smart
| Specifications | |
| Name | 270 TS S4 |
| Manufacturer Code | 99.830 |
| Security | |
| Paper Shred Size | 3.8mm Strip Cut |
| Media Shred Size | 22.5mm strips |
| DIN 66399 Security Levels | P-2 / O-1 / T-2 / E-2 |
| Old DIN 32757-1 Level | Internal (DIN 2) |
| Capacities | |
| Sheet Capacity (80gsm) All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 24 sheets |
| Sheet Capacity (70gsm) All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 29 sheets |
| Daily Capacity | 1000 sheets |
| CD/DVD Capacity | 1 |
| Daily Media Capacity | 10 CDs/DVDs per day |
| Specifications | |
| Throat Width | 270mm Entry Throat (A4 and A3) |
| Media Throat | Separate 125mm Wide Throat |
| Shreds Paper | Yes |
| Shreds Staples Staples refer to standard 26/6 sized staples - never shred these through an automatic paper feeder - use the manual feed slot instead | Yes |
| Shreds Paperclips Paperclips refer to standard sized paperclips - never shred these through an automatic paper feeder - use the manual feed slot instead | Yes |
| Shreds CDs/DVDs/Blu-Ray | Yes |
| Shreds Credit Cards | Yes |
| Shreds Floppy Disks | Yes |
| Shreds Cardboard Boxes | No |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 110 litres/1100 sheets |
| Bin Style | Pull Out Frame |
| Waste Sack Type | S3 |
| Extra Media Waste Bin | Yes |
| Media Waste Bin Capacity | 12 litres - 100-120 CD/DVDs |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 3 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 55 dB |
| Motor | 460 watts |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 230/50 |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 530x430x880mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 45kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 2 years |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
10 years |
| Downloads | |
| Buyers Guide | Download Here
 |
| Instruction Manual | Download Here
|
Specifications subject to change - See Terms & Conditions for more info
