JBF 38-50HD 6mm Hard Drive Mobile Disintegrator (JBF38-50HDM6)
The Public Sector, Schools & Registered Charities can order online & receive 30 days instant credit - Read more here
Leasing Illustration - Example Only
This model could be available for £378.77 per week
Leasing Illustration - Example Only
This model could be available for £378.77 per week
Specifications
- Shreds Hard Drives to 5.5''and Magnetic Tapes (DLT, Ultrium, LTOs), Zip, Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, USB Sticks, Solid State, Phones and PDAs
- Up to 20 drives/hour
- Shreds up to 12kg per hour
- DIN Security Level: O-4 / T-5 / E-4 / H-5
- 1165x700mm Entry Throat (Hopper)
- Bin Capacity: 117 litres
- Dimensions (WxDxH): 1521x885x1469mm
Jump to: Full Product Info
Product Information
PDF Data Sheet

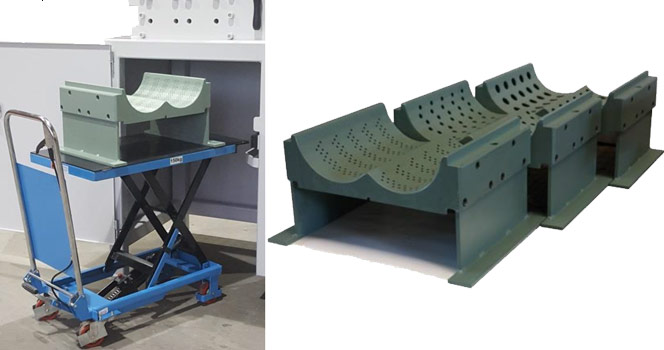

Interchangeable Screens - Meeting Adapting Security Requirements
With JBF's interchangeable sizing screens, the final particle size can be adapted quickly to suit different security requirements. Each machine has its own compatible set of screens, which can be swapped within that specific machine. Swap to a finer or coarser screen to match the job, without changing the cutting unit. Smaller screen holes typically deliver higher security output (at reduced throughput), while larger holes increase throughput for less stringent requirements.
The JBF HD 38/50 is designed to destroy nearly all commonly used HDDs. Without a screen it delivers basic industrial destruction, then screens can reduce output to as low as 3mm for paramount security requirements.
The sizing screen defines the maximum particle size leaving the disintegrator: material is cut repeatedly until it can pass through the screen holes. This gives you a practical way to match output to different standards and security targets without changing machines. Because shred shape varies, hole diameter is a practical guide rather than an exact guarantee of final chip dimensions.
For high-security applications, the 3 mm screen produces particles aligned with DIN 66399 levels O5, T6, H6, and E5. To help reduce wear in demanding use, the screens are made from wear-resistant HARDOX material.

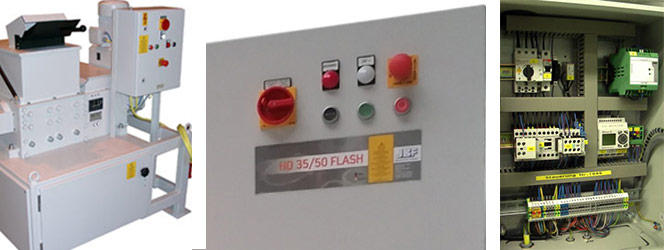

Simple Operation with Built-In Safety
Operation is straightforward as all operation buttons, indicator lights, plus emergency-switch and main on / off switch are combined in one central console. All electrical items like contactors, overload protection switches, emergency-stop-relay, main switch, transformers and terminals are clearly arranged in the central control cabinet. All functions are controlled fully automatically by a specially programmed Eaton easy PLC.
Designed with safety in mind, the cutter unit has a feed lever, keeping operation tidy and controlled. To process larger media or multiple HDDs in parallel when needed, lift the hopper top cover. For safety, a limit switch cuts off the shredder while the top cover is open, and also while the control cabinet door is open to add another safety layer. The result is high-capability destruction with an operator-friendly workflow.

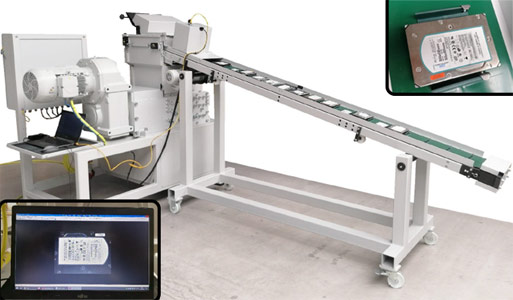

Optional Extras: Automated Proof of Destruction: Photo & Barcode Logging
Load up to 15 HDDs onto the feed conveyor and start the process for a simple, repeatable chain-of-custody workflow. The conveyor automatically positions each drive under a camera/scanner unit, where a photo is captured and saved directly to a folder on the connected laptop. At the same time, the HDD barcode is scanned and saved into a .txt file on the same laptop, making it easy to paste the data into shredding record documents. This photo record is useful even when barcode reading fails, because the serial number or other identifying details can often be read from the image. Once the drive has been photographed and scanned, there is no access to the HDD: the HDD continues along the conveyor and drops directly into the shredder, supporting a secure, tamper-resistant process.

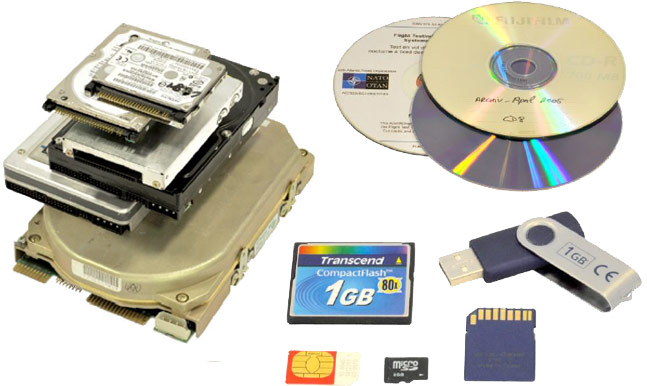

Understanding Security Levels (DIN 66399 ISO/IEC 21964)
What are the Security Levels for data destruction?
The destruction of media is classified into 6 categories, each available in 7 different security levels. The higher the security required, the higher the number. For example, Level 1 is the lowest security level, meaning that the data on it can be reproduced without special tools or skills but not without a certain amount of time expenditure. This is recommended e.g. for memory media containing general data which needs to be rendered illegible. Whereas Level 7 is the highest security level, meaning data is impossible to reproduce given the current level of science and technology. If maximum security standards are required, this level is recommended for memory media containing data which needs to be kept top secret.
Six Media Categories
- P - Paper Based Products
- F - Film Based Products including Micro-film, Microfiche, and Slides etc.
- O - Optical Media including CD's, DVD's and Blu-ray Disks etc.
- T - Magnetic Data Media like Floppy Discs, ID Cards, Magnetic Tapes, and Cassettes etc.
- H - Hard Drives from Computers, Laptops, and External Devices
- E - Electronic Data Media like Memory Sticks, Cards with a Magnetic Chip, Solid State Drives (SSDs) and Mobile Phones
For more information, please see our Security Levels explainer page.
Product Details
JBF HD 38/50 Mobile Hard Drive Shredder
The JBF HD 38/50 is a specialist hard drive shredder built for secure, on-site destruction of hard drives and other magnetic or electronic media. It is designed for organisations that need robust, repeatable media destruction in-house or in the field, with optional security screens allowing the output size to be matched to the required level of destruction.
Key reasons buyers choose it
- Purpose-built for destruction of commonly used hard disk drives
- Optional exchangeable security screens to increase destruction level
- Suitable for static installations or mobile deployment
- Compact footprint, requiring only around 1.7 sqm of floor space
- Can be moved with one or two hand pallet trucks for flexible siting
- Simple, automated PLC-controlled operation to reduce operator input
- Listed by NPSA in its Catalogue of Security Equipment, and this shredder has been NPSA (formerly known as CPNI) evaluated to shred hard drives
Security standards and compliance (DIN 66399)
Security levels depend on the screen fitted and the media being destroyed. Without a screen, the machine shreds hard drives into strip-cut pieces for basic industrial destruction. Adding a security screen reduces the final particle size and increases the destruction level. The optional screen range includes 20 mm, 14 mm, 12 mm, 10 mm, 8 mm, 6 mm and, for certain higher-security applications, 3 mm.
Typical DIN 66399 outputs by screen size are:
- 20 mm screen: O2 / T2 / H4 / E2
- 14 mm screen: O3 / T3 / H5 / E2
- 12 mm screen: O4 / T4 / H5 / E3
- 10 mm screen: O4 / T4 / H5 / E3
- 8 mm screen: O4 / T4 / H5 / E3
- 6 mm screen: O4 / T5 / H5 / E4
- 3 mm screen: O5 / T6 / H6 / E5
If you need to evidence a particular output size or security level for your application, we can advise on the most suitable screen configuration.
Heavy-duty cutting unit for hard drives and mixed media
The HD 38/50 uses a solid industrial cutting unit with 30 mm cutters and a powerful geared motor, developed specifically for hard drive destruction. The cutting geometry is designed to grip and process HDDs effectively, while the machine can also handle CDs, DVDs, video cassettes, DLT tapes, magnetic tapes, electronic circuit boards and similar media.
Media is fed continuously through the hopper slot, while the foldable hopper cover allows larger media or multiple hard drives to be loaded when required. A safety interlock stops the machine if the hopper cover is opened during operation.
Screen options and particle size control
The screen system allows the machine to be adapted to different operational and security requirements. Once fitted beneath the cutting shafts, the screen retains the shredded material until it has been cut down small enough to pass through the selected mesh size. This gives buyers flexibility to balance throughput against output size and security requirement.
As a guide, throughput varies by screen size. Manufacturer literature gives practical examples of approximately:
- 100 x 3.5" HDDs per hour with a 20 mm screen
- 80 x 3.5" HDDs per hour with a 14 mm screen
- 50 x 3.5" HDDs per hour with a 12 mm screen
- 30 x 3.5" HDDs per hour with a 10 mm screen
- 22 x 3.5" HDDs per hour with an 8 mm screen
- 20 x 3.5" HDDs per hour with a 6 mm screen
- 3 x 3.5" HDDs per hour with a 3 mm screen
Deployment options - static or mobile
The HD 38/50 FLASH can be supplied for fixed installations or adapted for mobile use. Mobile deployment can be specified with chassis options for trucks or vans, with a hydraulic main drive option available for mobile installation via a truck PTO (power take-off).
Accessories and operator upgrades
Common options and accessories include:
- Exchangeable security screens in a range of mesh sizes
- 130 litre collecting box with trolley
- Mobile lifting table to support screen changes without a forklift
- Alternative local collection boxes where suitable
- Configuration advice based on required security level and media type
Technical specification
- Power supply: 400V / 50Hz / 3-phase
- Plug: CEE 32 A
- Main drive: 4 kW geared motor
- Cutting zone: approx. 380 x 500 mm
- Working width: 380 mm
- Cutting width: 30 mm strip cut
- Sound level: approx. 70 dBA at idle
- Floor space required: approx. 1.7 sqm
- Collecting box capacity: 130 litres
Important operating notes
- The machine should be configured with the correct screen for the required destruction level and throughput
- Smaller mesh sizes increase security, but reduce throughput
- The hopper cover and access door are safety-interlocked to stop the shredder when opened
- For 3 mm screen operation in particular, regular cleaning may be needed due to magnetic dust build-up
FAQs
Does it shred only hard drives?
No - although it is purpose-built around hard drive destruction, it can also process other media such as CDs, DVDs, video cassettes, magnetic tapes and electronic circuit boards.
Can it be used for higher-security destruction?
Yes - optional security screens allow the machine to achieve progressively smaller output sizes and higher DIN 66399 levels, including a 3 mm option for certain high-security requirements.
Can it be moved around site?
Yes - the machine is designed so it can be moved with one or two hand pallet trucks, making it easier to site or reposition than many heavier fixed shredding systems.
Warranty Terms
Standard Warranty is 6 months from date of delivery for non-wear and tear parts in a one-shift operation or 1,000 working hours. Normal wear and tear of the knives and screens is excluded from the warranty and is subject to the manufacturers operating instructions. Inappropriate use of the machine would include but is not limited to improper installation, commissioning, set-up, operation or servicing of the machine. The machine was designed for safe operation by trained and instructed staff only and is not designed to be used by children. No other work may be performed on the machine during cleaning or servicing. The warranty will be void in the event of incorrect installation, start-up, set-up, maintenance; unauthorised physical/structural modification of the machine; unauthorised intervention into the control system; emplacement and use of unapproved components and spare parts; faulty repairs by non-trained and authorized personnel.
This shredder has been NPSA (formerly known as CPNI) evaluated to shred the following material:
| Specifications | |
| Name | 38-50HD 6mm Hard Drive Mobile Disintegrator |
| Manufacturer Code | JBF38-50HDM6 |
| Security | |
| Shred Size: | 6mm Security Particles |
| DIN 66399 Security Levels | O-4 / T-5 / E-4 / H-5 |
| Security Level: | Highest |
| Capacities | |
| Hourly Capacity | 12kg per hour |
| Capacity | Up to 20 drives/hour |
| Specifications | |
| Throat Width | 1165x700mm Entry Throat (Hopper) |
| Shreds | Hard Drives to 5.5''and Magnetic Tapes (DLT, Ultrium, LTOs), Zip, Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, USB Sticks, Solid State, Phones and PDAs |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 117 litres |
| Extra Media Waste Bin | N/A |
| Technical | |
| Motor | 4000 watts |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1521x885x1469mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 1100kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 6 months |
| Downloads | |
| Buyers Guide | Download Here
 |
Specifications subject to change - See Terms & Conditions for more info
