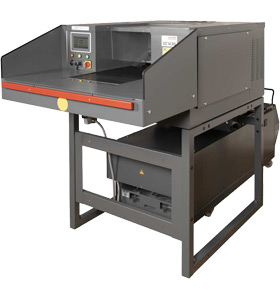

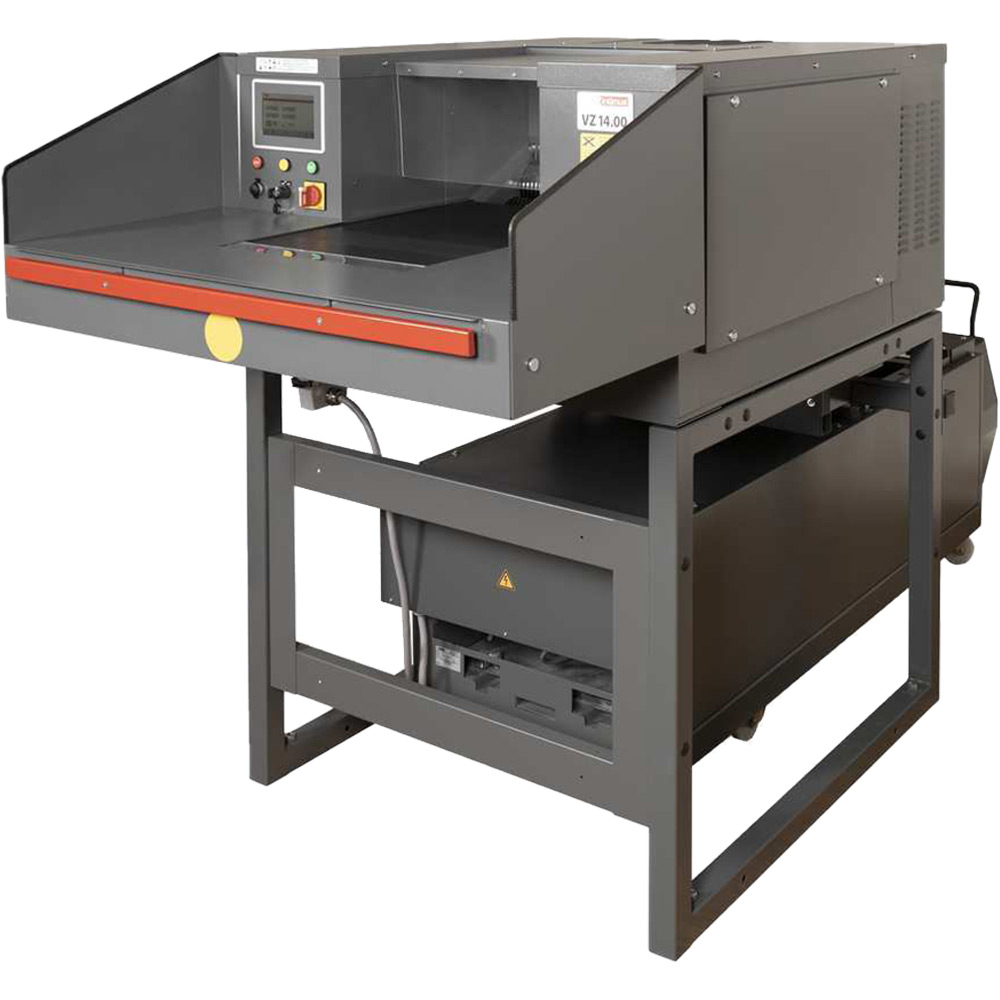

Intimus VZ 14.00/4 2x15mm Cross Cut Shredder Baler (553901+475941)
£55,075 + vat (£66,090 inc vat)
These machines are typically manufactured to order and are usually available within 4-6 Weeks.
Leasing Illustration - Example Only
This model could be available for £279.65 per week
Specifications
- 90 sheets per pass
- Shreds Paper, Staples, Paperclips, CDs/DVDs & Credit Cards
- Shreds up to 245kg per hour
- 2x15mm Cross Cut / DIN Security Level P-5 for information of fundamental importance. More Info.
- 500mm Entry Throat (A2)
- Dimensions (WxDxH): 365x120x1670mm
- A manufacturer's demonstration is usually available on request
Jump to: Full Product Info
Data Sheet
Product Details

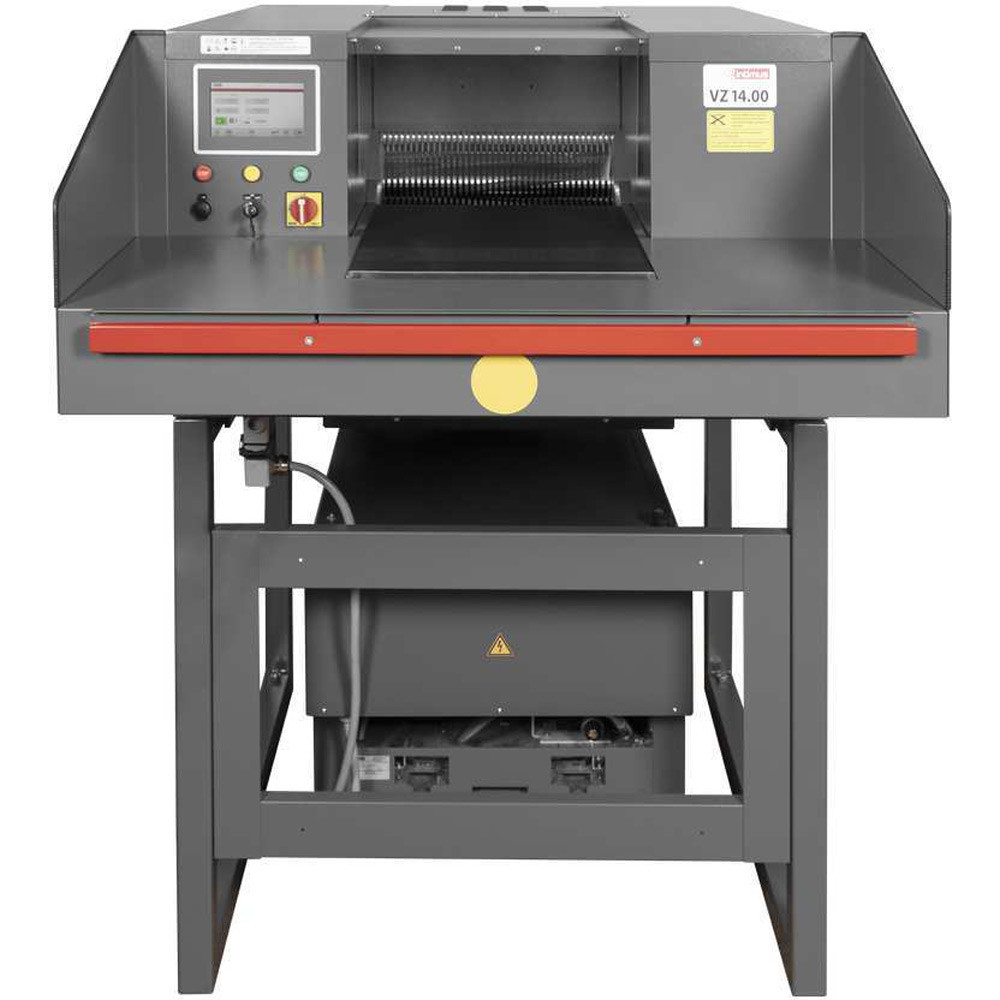

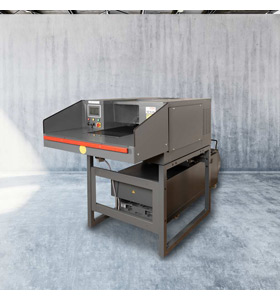

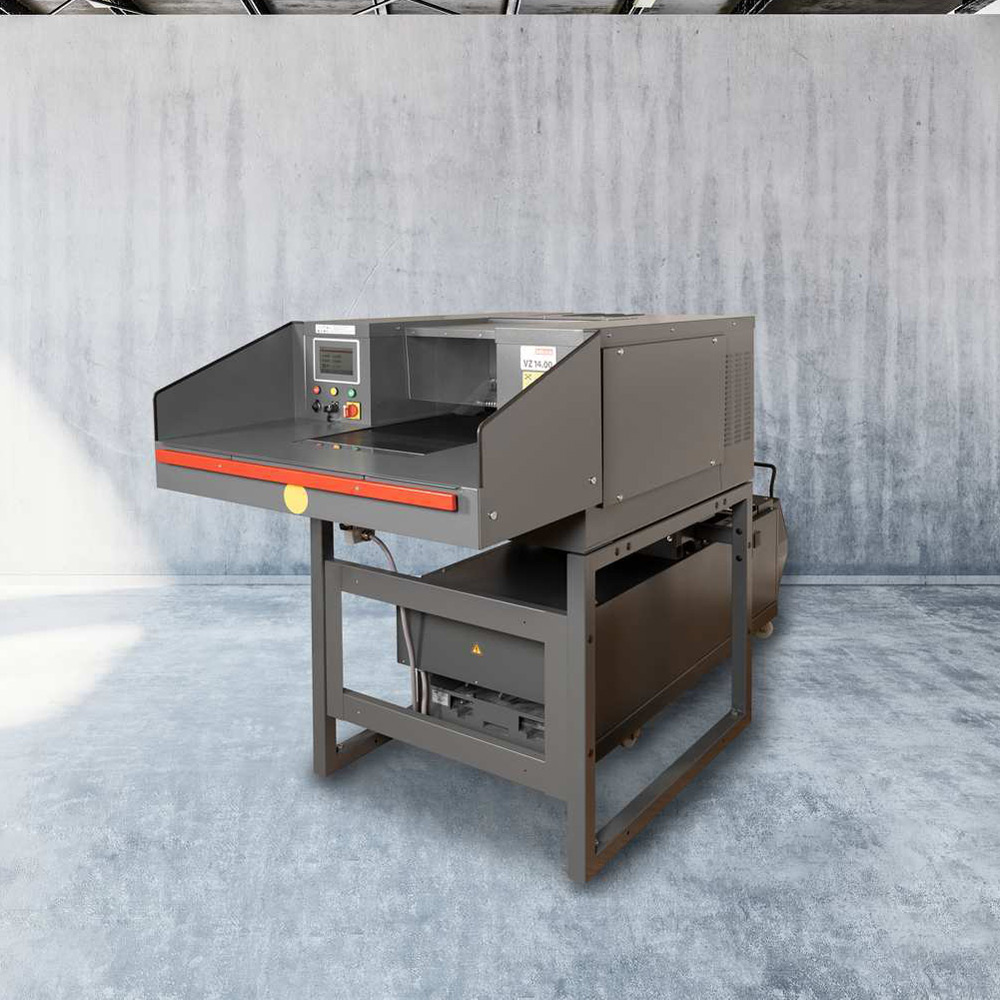

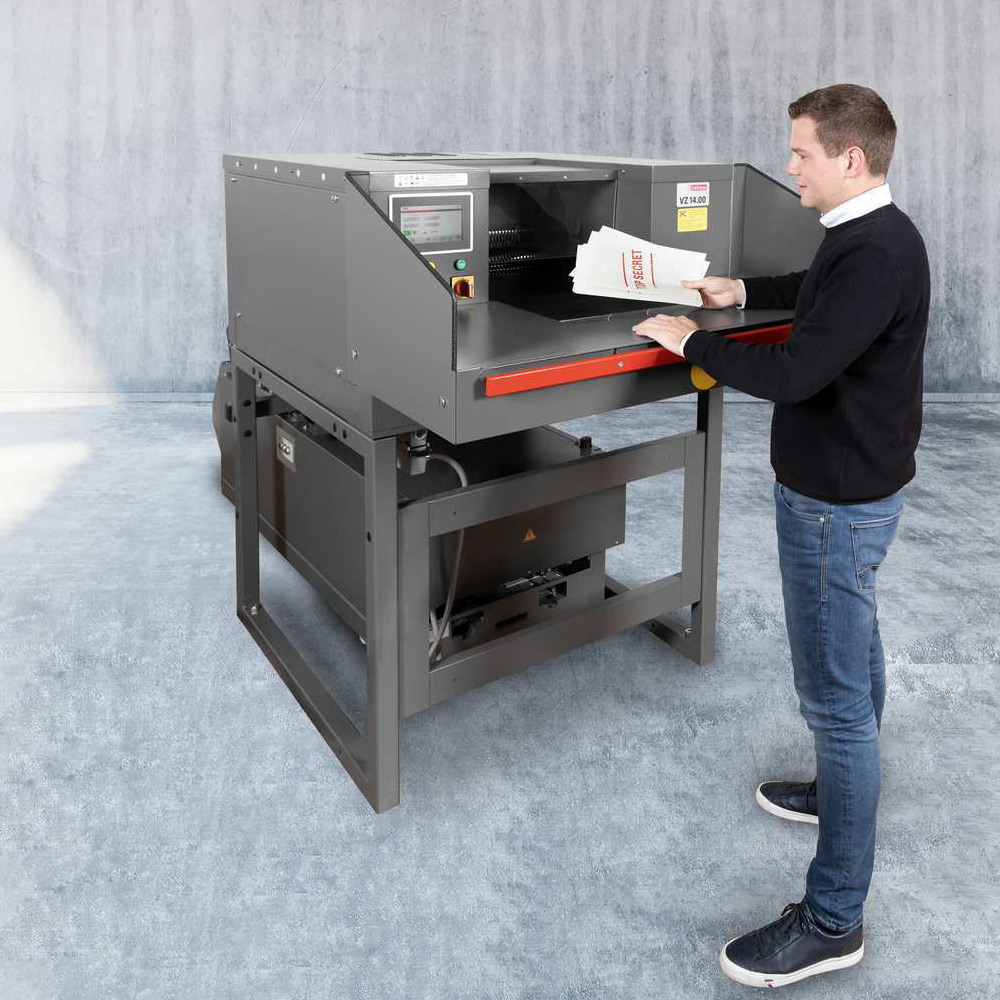

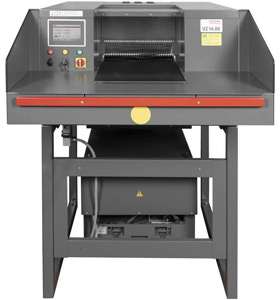

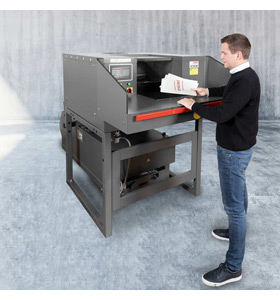

The Intimus VZ 14.00 Heavy-Duty Shredder Baler provides a comprehensive solution for the destruction of sensitive data, meeting the increasing global demands for higher security. This robust system features a two-stage shredding process with a pre-shredder and a security shredder, ensuring efficient breakdown of personal data into minuscule particles. The wide input table has an integrated conveyor belt, feeding the material into the pre-shredder, which produces 6x50mm particles. The cut material then falls directly onto a conveyor belt leading into the post-shredder that further reduces them to 2x15mm, guaranteeing a security level of P-5 according to DIN 66399 (ISO/IEC 21964).

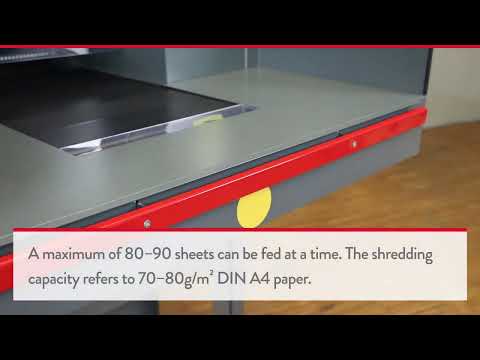

The VZ 14.00 is simple to use thanks to its clear control panel with safety concept and security device. The durable, high-quality steel cutter cylinders can process stapled materials and are designed for longevity. The system's high throughput is supported by a powerful, thermo-protected geared motor, ensuring smooth, continuous operation with an ability to feed 80-90 sheets at a time. In case of overloading, the shredder units automatically reverse and then resume normal operation.
Additionally, the VZ 14.00 shredder has a built-in automatic lubricator that maintains consistent cutting performance and quality. Safety is also prioritized with a wide emergency stop bar that can instantly halt machine operation.
The attached baler system enhances the efficiency of the VZ 14.00 shredder by producing compact, stable 60-80kg bales. It electronically monitors the fill level of the bale chamber and triggers the bale compression automatically, allowing the shredder to continue operating at the same time. A visual signal indicates when a bale is ready, temporarily interrupting the cutting process for push-button bale ejection. This system not only compacts the shredded material by approximately 70% compared to loose collection but also facilitates clean, low-dust transport and weather-protected packaging of compact bales. Adjustments to the bale weight can be made by a technician according to requirements.
GDPR Compliance
DIN Security Levels
| Specifications | |
| Name | VZ 14.00/4 |
| Manufacturer Code | 553901+475941 |
| Security | |
| Paper Shred Size | 2x15mm Cross Cut |
| DIN 66399 Security Levels | P-5 / O-4 / T-5 / E-4 / F-2 |
| Capacities | |
| Sheet Capacity (80gsm) All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 90 sheets |
| Sheet Capacity (70gsm) All specifications stated are to be used as guidance only and are subject to change at any time. Shredder sheet capacities for example are provided by manufacturers and are based on 70 gram paper, and are normally only achievable in ideal situations, so heavier duty paper will shred less sheets. In many cases the capacities quoted are theoretical as conditions vary and are dependent on operator usage, age and condition of machines, how regularly cutters are oiled, type and quality of paper etc. so realistic throughputs can be as low as half that of the theoretical capacities quoted. | 100 sheets |
| Hourly Capacity | 245kg per hour |
| Specifications | |
| Throat Width | 500mm Entry Throat (A2) |
| Shreds Paper | Yes |
| Shreds Staples Staples refer to standard 26/6 sized staples - never shred these through an automatic paper feeder - use the manual feed slot instead | Yes |
| Shreds Paperclips Paperclips refer to standard sized paperclips - never shred these through an automatic paper feeder - use the manual feed slot instead | Yes |
| Shreds CDs/DVDs/Blu-Ray | Yes |
| Shreds Credit Cards | Yes |
| Shreds Floppy Disks | Yes |
| Shreds Cardboard Boxes | No |
| Waste Bin | |
| Waste Sack Type | S8 |
| Extra Media Waste Bin | N/A |
| Technical | |
| Cutting Speed This is the optimum speed that can be achieved however please note that cutting speed can be affected by a number of factors including number of sheets shredded, how often the machine is oiled, the thickness & type of the paper etc. | 14.4 metres/min |
| Noise Level Can be subject to many factors but is an indication when a machine is run without paper being shredded. | 68 dB |
| Motor | 11300 kW |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 365x120x1670mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 1424kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 1 year |
| Cutter Warranty Cutter warranties are for parts only and
do not include labour |
3 years |
| Downloads | |
| Buyers Guide | Download Here
 |
Specifications subject to change - See Terms & Conditions for more info
