JBF 35-50HD Flash 6mm Hard Drive Mobile Disintegrator
The Public Sector, Schools & Registered Charities can order online & receive 30 days instant credit - Read more here
Leasing Illustration - Example Only
This model could be available for £381.31 per week
Leasing Illustration - Example Only
This model could be available for £381.31 per week
Specifications
- Shreds Hard Drives to 5.5''and Magnetic Tapes (DLT, Ultrium, LTOs), Zip, Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, USB Sticks, Solid State, Phones and PDAs Separate cutting head for Small Media - Thumb Drives & SD Cards
- Up to 38 drives/hour
- Shreds up to 12kg per hour
- DIN Security Level: H-5
- 350x500mm Entry Throat (Hopper)
- Bin Capacity: 130 litres
- Dimensions (WxDxH): 1616x885x1615mm
Jump to: Full Product Info
Data Sheet

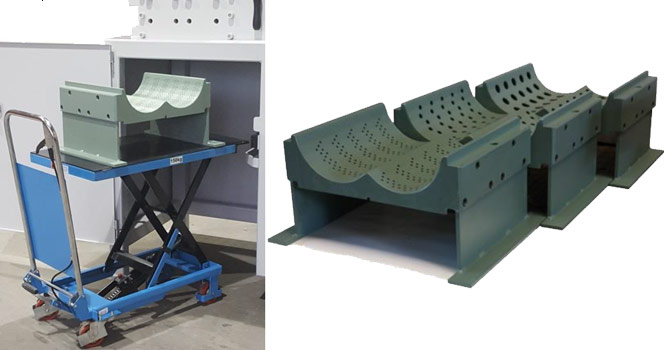

Interchangeable Screens - Meeting Adapting Security Requirements
With JBF's interchangeable sizing screens, the final particle size can be adapted quickly to suit different security requirements. Each machine has its own compatible set of screens, which can be swapped within that specific machine. Swap to a finer or coarser screen to match the job, without changing the cutting unit. Smaller screen holes typically deliver higher security output (at reduced throughput), while larger holes increase throughput for less stringent requirements.
The JBF HD 35/50 Flash is designed to destroy nearly all commonly used HDDs and Flash media. Without a screen it delivers basic industrial destruction, then screens can reduce output to as low as 3mm (or 2.5mm in the flash cutting unit) for paramount security requirements.
The sizing screen defines the maximum particle size leaving the disintegrator: material is cut repeatedly until it can pass through the screen holes. This gives you a practical way to match output to different standards and security targets without changing machines. Because shred shape varies, hole diameter is a practical guide rather than an exact guarantee of final chip dimensions.
For high-security applications, the 3 mm screen produces particles aligned with DIN 66399 levels O5, T6, H6, and E5. To help reduce wear in demanding use, the screens are made from wear-resistant HARDOX material.

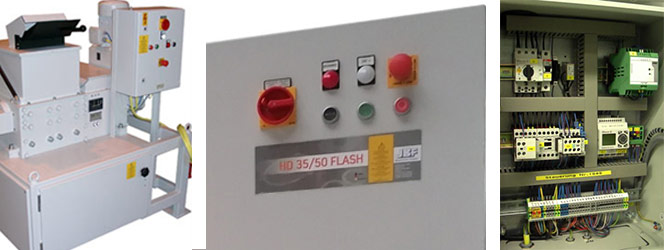

Simple Operation with Built-In Safety
Operation is straightforward as all operation buttons, indicator lights, plus emergency-switch and main on / off switch are combined in one central console. All electrical items like contactors, overload protection switches, emergency-stop-relay, main switch, transformers and terminals are clearly arranged in the central control cabinet. All functions are controlled fully automatically by a specially programmed Eaton easy PLC.

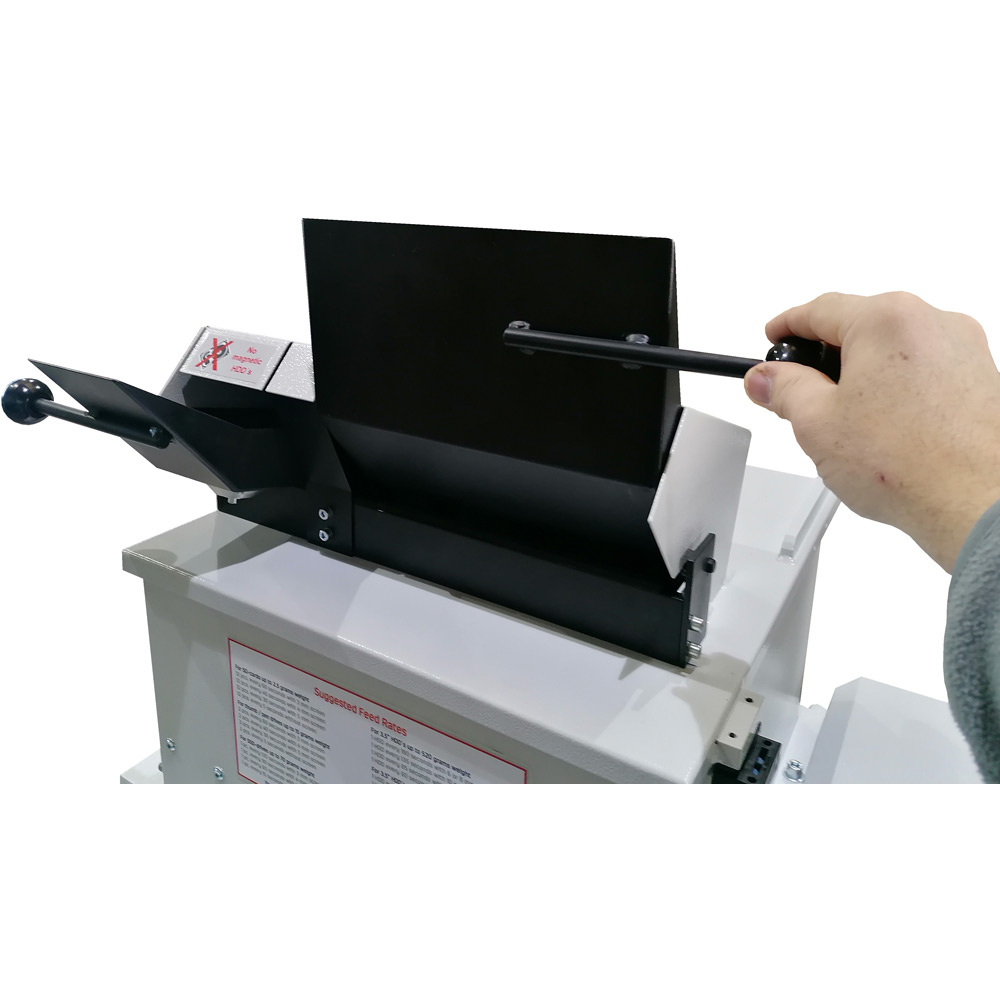

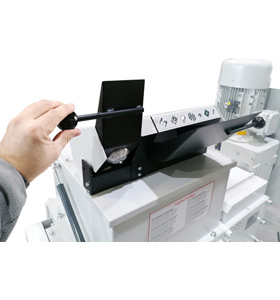

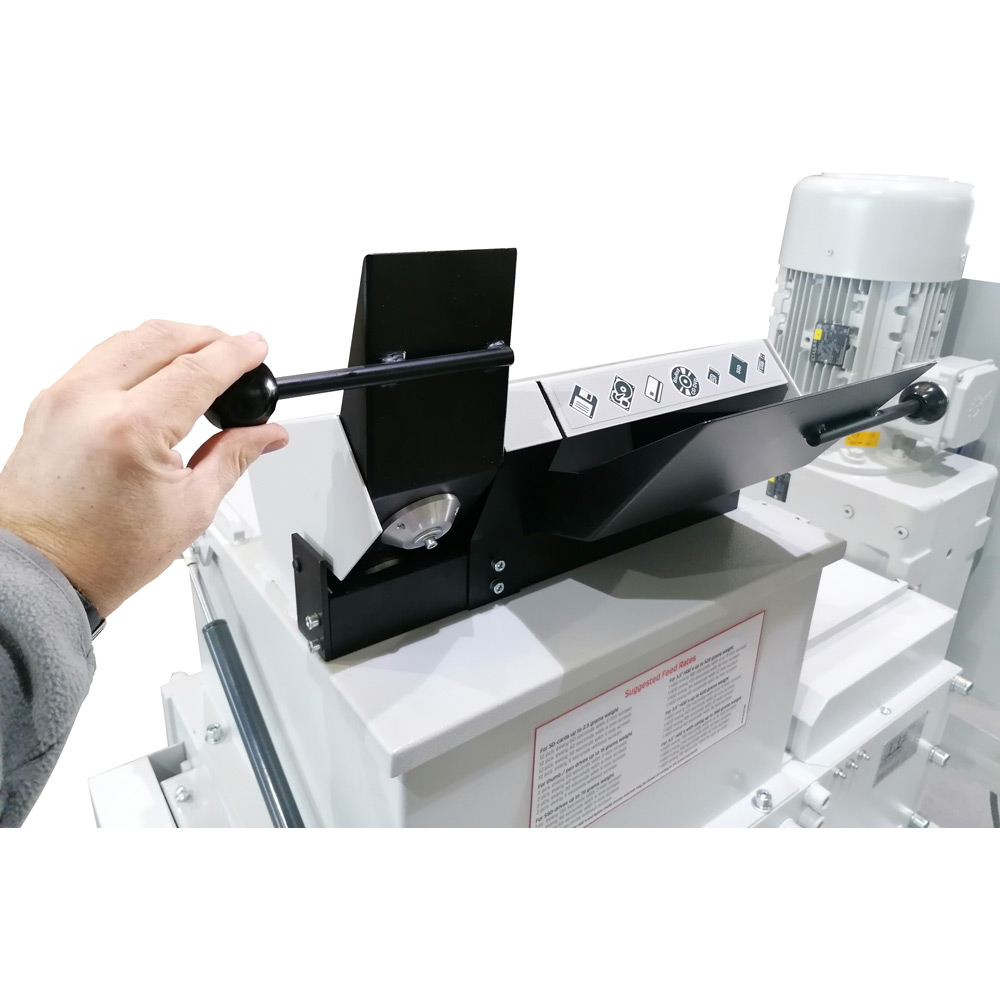

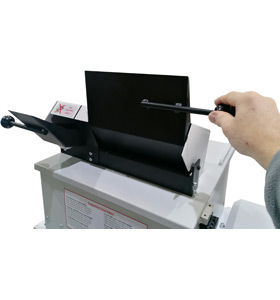

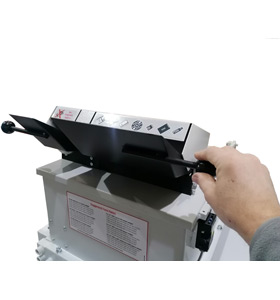

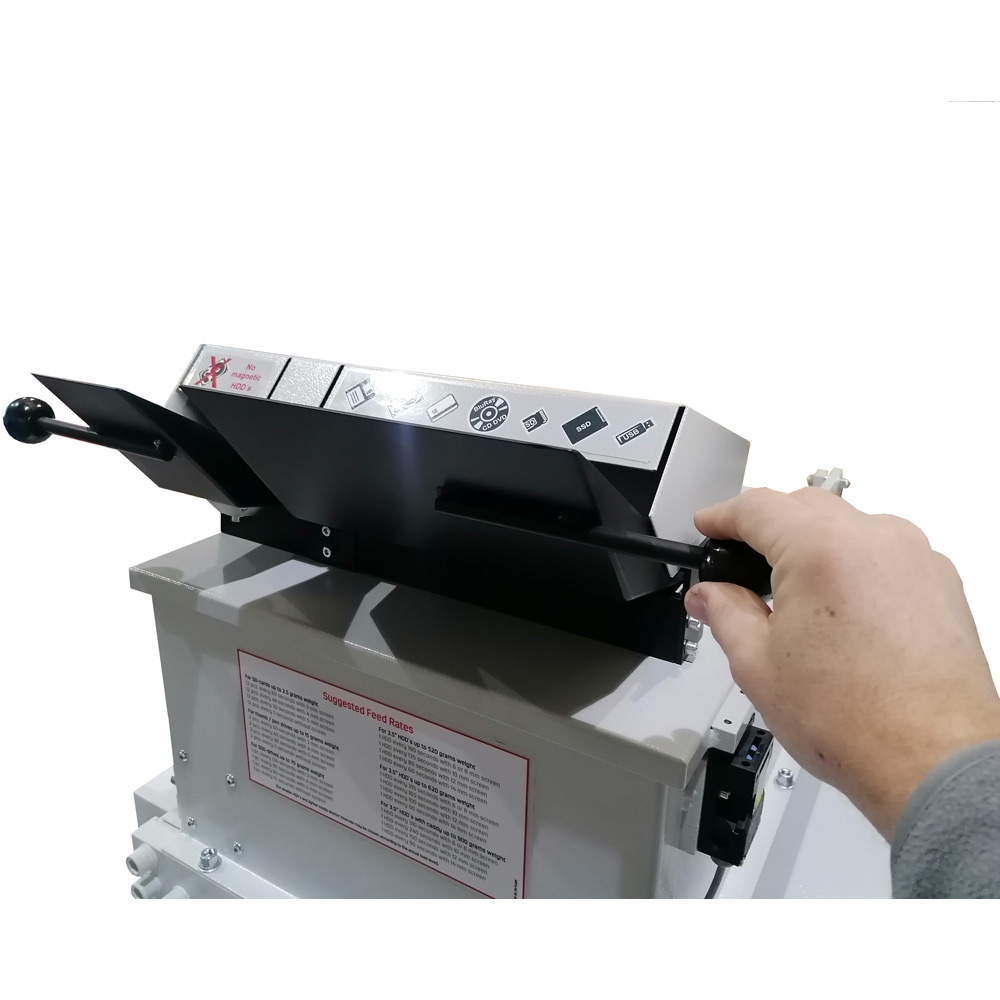

Designed with safety in mind, the cutter unit has a feed lever, keeping operation tidy and controlled. To process larger media or multiple HDDs in parallel when needed, lift the hopper top cover. For safety, a limit switch cuts off the shredder while the top cover is open, and also while the control cabinet door is open to add another safety layer. The result is high-capability destruction with an operator-friendly workflow.

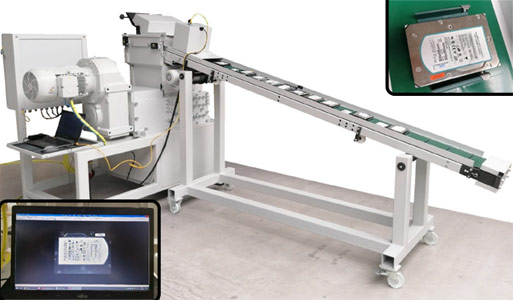

Optional Extras: Automated Proof of Destruction: Photo & Barcode Logging
Load up to 15 HDDs onto the feed conveyor and start the process for a simple, repeatable chain-of-custody workflow. The conveyor automatically positions each drive under a camera/scanner unit, where a photo is captured and saved directly to a folder on the connected laptop. At the same time, the HDD barcode is scanned and saved into a .txt file on the same laptop, making it easy to paste the data into shredding record documents. This photo record is useful even when barcode reading fails, because the serial number or other identifying details can often be read from the image. Once the drive has been photographed and scanned, there is no access to the HDD: the HDD continues along the conveyor and drops directly into the shredder, supporting a secure, tamper-resistant process.

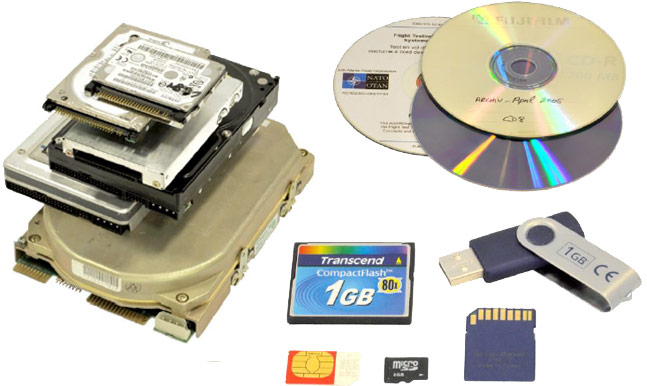

Understanding Security Levels (DIN 66399 ISO/IEC 21964)
What are the Security Levels for data destruction?
The destruction of media is classified into 6 categories, each available in 7 different security levels. The higher the security required, the higher the number. For example, Level 1 is the lowest security level, meaning that the data on it can be reproduced without special tools or skills but not without a certain amount of time expenditure. This is recommended e.g. for memory media containing general data which needs to be rendered illegible. Whereas Level 7 is the highest security level, meaning data is impossible to reproduce given the current level of science and technology. If maximum security standards are required, this level is recommended for memory media containing data which needs to be kept top secret.
Six Media Categories
- P - Paper Based Products
- F - Film Based Products including Micro-film, Microfiche, and Slides etc.
- O - Optical Media including CD's, DVD's and Blu-ray Disks etc.
- T - Magnetic Data Media like Floppy Discs, ID Cards, Magnetic Tapes, and Cassettes etc.
- H - Hard Drives from Computers, Laptops, and External Devices
- E - Electronic Data Media like Memory Sticks, Cards with a Magnetic Chip, Solid State Drives (SSDs) and Mobile Phones
For more information, please see our Security Levels explainer page.

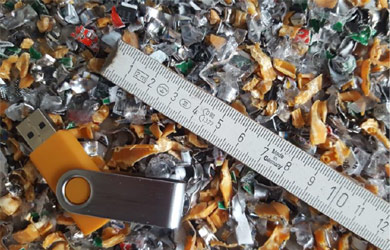

Why Shredding Flash & SSD Media Matters
Flash and SSD media may be small, but they can contain an enormous amount of private, business, or confidential information. When devices are retired, returned from lease, resold, or fail, that data still needs to be securely eliminated to meet security policies and regulatory expectations. While certified overwriting can work on functioning devices, it's often time-consuming at scale - and for damaged or non-operational media it may not be possible at all. Physical shredding removes the risk of data recovery by destroying the storage chips and components directly. It's also important to note that Flash-based media cannot be degaussed like magnetic drives, so "erase by degaussing" isn't an option. For organisations that need a clear, dependable end-of-life process, shredding is the most reliable route to true data destruction.
Product Details
JBF 35/50 HD FLASH Mobile Hard Drive and SSD Shredder
The JBF 35/50 HD FLASH is a dual-cutting-unit media shredder built for secure, on-site destruction of mixed data media. It combines a dedicated hard drive cutting unit with a separate flash-media cutting unit for items like SSDs, USB sticks and SD cards, allowing you to match the right cutting geometry to the right media while meeting stringent security requirements. It is a strong fit for defence, police and security-contract environments where chain of custody, compliance and on-site destruction matter.
Key reasons buyers choose it
- Two cutting units in one machine - one for HDDs and larger data media, one for flash media
- Configurable security via exchangeable screens on both cutting units (configuration dependent)
- Designed to pass through 900 mm / 36" office doors for easier siting
- Single 400V 3-phase supply and one main drive powering both cutting units
- Options to suit static installs or mobile deployments (including truck installation and PTO drive options)
- Optional upgrades to support secure processes, including audit trail features and operator-efficiency add-ons
Security standards and compliance (DIN 66399)
Security levels depend on the screen fitted and the media category being destroyed. This shredder has been NPSA (formerly known as CPNI) evaluated to shred hard drives.
Main cutting unit (HDDs and larger media)
- Without screen: DIN 66399 T1 / H4 / E2
- With screen: up to O5 / T6 / H7 / E5
- Without screen: DIN 66399 F1 / O3 / T4 / E3
- With screen: up to F4 / O6 / T7 / E5 (certain configurations may be referenced against additional government requirements - details available on request)
If you need to evidence a specific standard or configuration for your application, request the relevant configuration detail and supporting documentation as part of the quotation process.

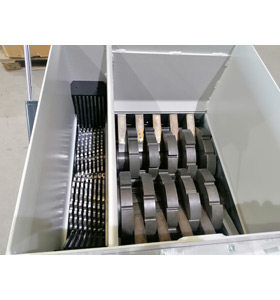

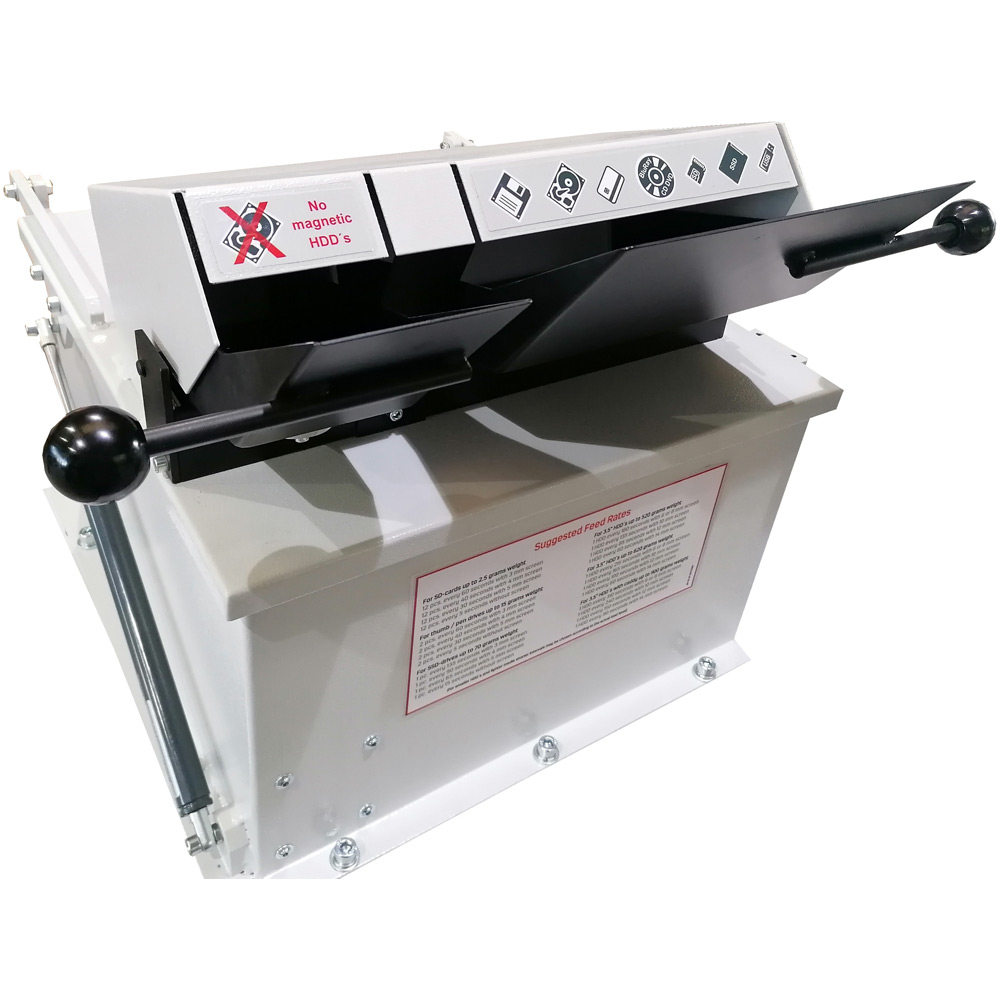

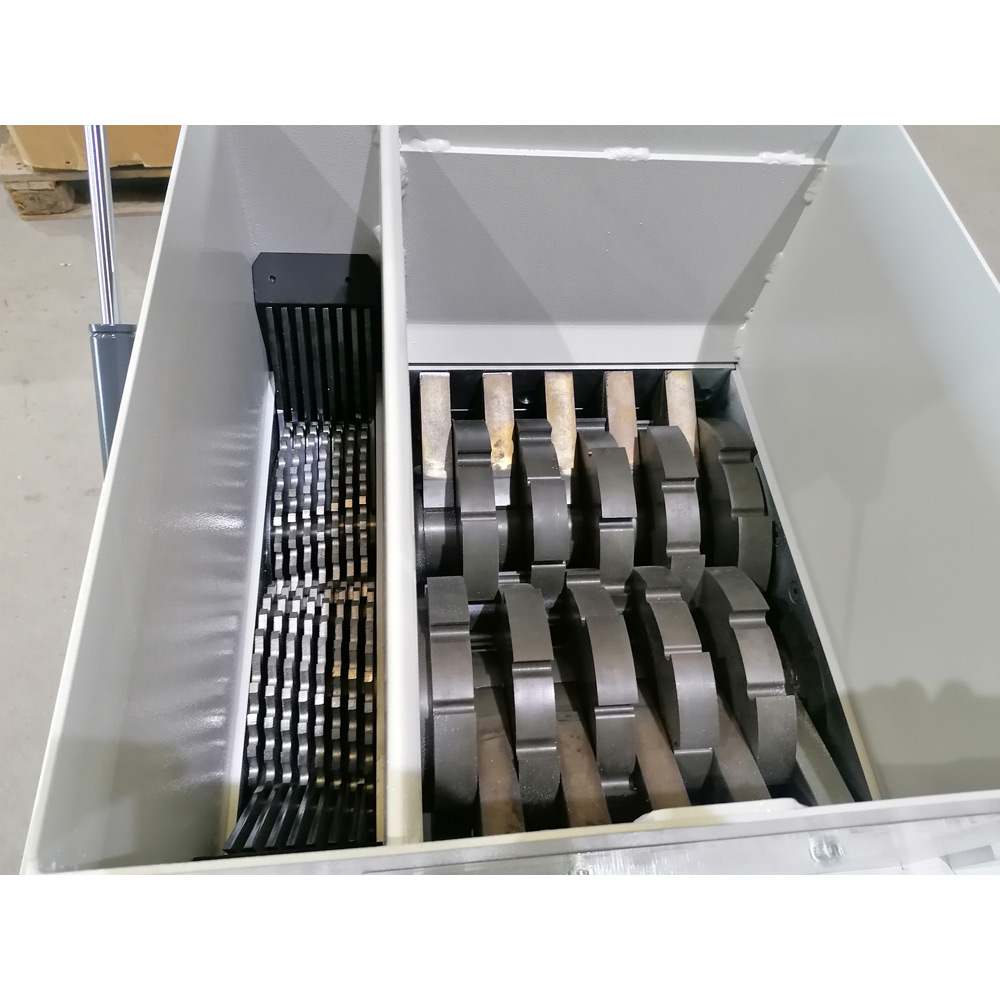

Two cutting units for mixed media destruction
Main cutting unit
- Wide feed hopper for HDDs and larger format media (for example HDDs, CDs/DVDs, tablets and phones without battery)
- Rugged knife set designed for heavier items and mixed loads

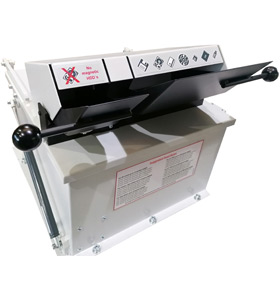

Auxiliary cutting unit
- Slim feed hopper dedicated to small flash media (for example SSD drives, thumb drives, SD cards and phones without battery)
- Knife geometry optimised for smaller media to achieve finer output sizes when required
Screen options and particle size control
Both cutting units can be fitted with their own exchangeable screens to adapt output size and security class to the job. Typical examples include:
Main unit screens
- 12 mm
- 6 mm
Auxiliary unit screens
- 6 mm
- 2 mm
If you have a specific media mix (for example a high proportion of SSDs) or a mandated output size, we can advise on the most suitable configuration.
Deployment options - static or mobile
The HD 35/50 FLASH can be supplied for fixed installations or adapted for mobile use. Mobile deployment can be specified with chassis options for trucks or vans, with a hydraulic main drive option available for mobile installation via a truck PTO (power take-off).
Accessories and operator upgrades
Common options include:
- Automated feed conveyor for HDDs (main cutting unit) so the operator can load media and let the machine run
- Collecting bins or boxes for convenient collection and handling of shredded particles
- Assembly aid for screens to simplify screen changeover

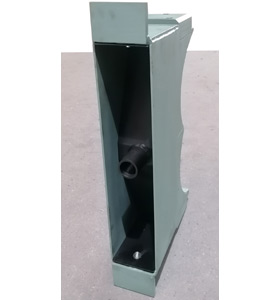

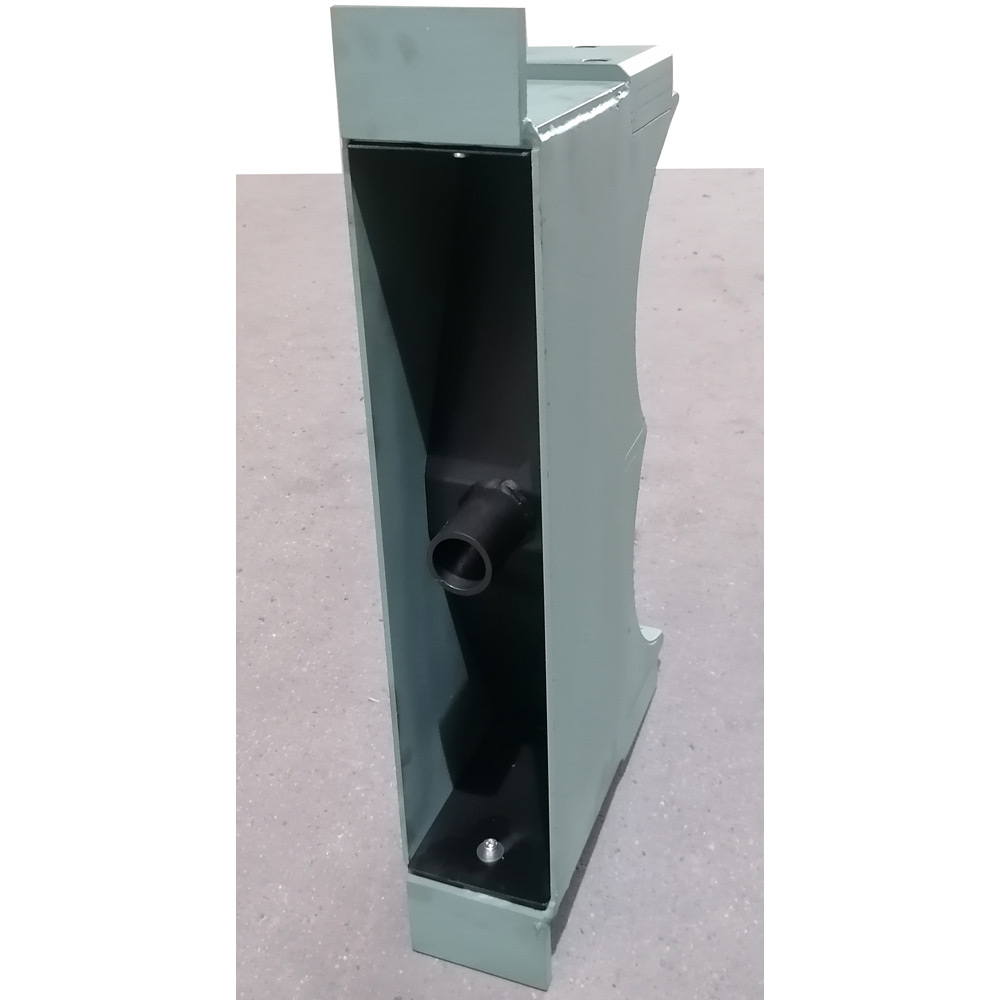

- Vacuuming hopper with 40 mm port to connect a suitable vacuum cleaner (can be bolted into flash screens)
- Discharge conveyors, dust extraction devices and other customisations on request
- Audit trail options to support proof-of-destruction workflows (speak to us about what you need to capture and report)
Technical specification (headline)
- Power supply: 400V / 50Hz / 3-phase (other voltages on request)
- Main drive: 5.5 kW
- Cutting zones: 350 x 500 mm (main) and 100 x 500 mm (auxiliary)
- Dimensions: 1,616 x 885 x 1,615 mm (H)
- Weight: approx. 1,200 kg
- Collecting volume: 130 litres
Important operating notes
- Use the correct hopper for the correct media: the auxiliary unit is intended for flash media, while HDDs should be processed via the main unit.
- Batteries should be removed from devices before shredding (especially lithium-ion) to reduce fire risk.
FAQs
Does it shred both HDDs and flash media?
Yes - it is built with two separate cutting units, one aimed at HDDs and larger media and one for smaller flash media such as SSDs, thumb drives and SD cards.
Can it be installed on a truck?
Mobile deployment is supported via custom chassis options, with a hydraulic main drive option available for truck PTO installations.
Will it fit through a standard doorway?
Yes - it is designed to pass through 900 mm / 36" office doors.
Warranty Terms
Standard warranty is 6 months from date of delivery for non-wear and tear parts in a one-shift operation or 1,000 working hours. Normal wear and tear of the knives and screens is excluded from the warranty and is subject to the manufacturers operating instructions. Inappropriate use of the machine would include but is not limited to improper installation, commissioning, set-up, operation or servicing of the machine. The machine was designed for safe operation by trained and instructed staff only and is not designed to be used by children. No other work may be performed on the machine during cleaning or servicing. The warranty will be void in the event of incorrect installation, start-up, set-up, maintenance; unauthorised physical/structural modification of the machine; unauthorised intervention into the control system; emplacement and use of unapproved components and spare parts; faulty repairs by non-trained and authorized personnel.
This shredder has been NPSA (formerly known as CPNI) evaluated to shred the following material:
| Specifications | |
| Name | 35-50HD Flash 6mm Hard Drive Mobile Disintegrator |
| Security | |
| Shred Size: | 6mm Security Particles |
| DIN 66399 Security Levels | H-5 |
| Security Level: | Highest |
| Capacities | |
| Hourly Capacity | 12kg per hour |
| Capacity | Up to 38 drives/hour |
| Specifications | |
| Throat Width | 350x500mm Entry Throat (Hopper) |
| Shreds | Hard Drives to 5.5''and Magnetic Tapes (DLT, Ultrium, LTOs), Zip, Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, USB Sticks, Solid State, Phones and PDAs Separate cutting head for Small Media - Thumb Drives & SD Cards |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 130 litres |
| Extra Media Waste Bin | N/A |
| Technical | |
| Motor | 5500 watts |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1616x885x1615mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 1200kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 6 months |
| Downloads | |
| Buyers Guide | Download Here
 |
Specifications subject to change - See Terms & Conditions for more info
