Garner Spacesaver IRONCLAD Shredder (SSC-25SSDE IRONCLAD)
£23,000 + vat (£27,600 inc vat)
Leasing Illustration - Example Only
This model could be available for £120.40 per week
Specifications
- PD-5E & HD-2XTSSE & IRONCLAD Verification
- Suitable for Tape and Hard Disk Drives up to 3.5", also SSD, flash USB thumb drives, SSHD controller boards
- Shreds up to HD-2XTSSE: Up to 1920 (1.8"), or 960 (2.5"), or 240 (3.5") hard drives per hour, or up to 180 hard drives per hour with IRONCLAD. PD-5E: Up to 1,800 (2.5") or 360 (3.5") hard drives per hour, or up to 180 hard drives per hour with IRONCLAD.
- DIN Security Level: H-3
- Dimensions (WxDxH): 460x594x459mm
- Chamber/Drawer Capacities (HxWxD):
HD-2XTSSE: 108 x 31.8 x 148.6 (mm)
PD-5E: 57.4 x 123.7 x 172.2 (mm)
SSD-1E: 13.2 x 73.7 x 152.4 (mm)
Jump to: Full Product Info
Product Details

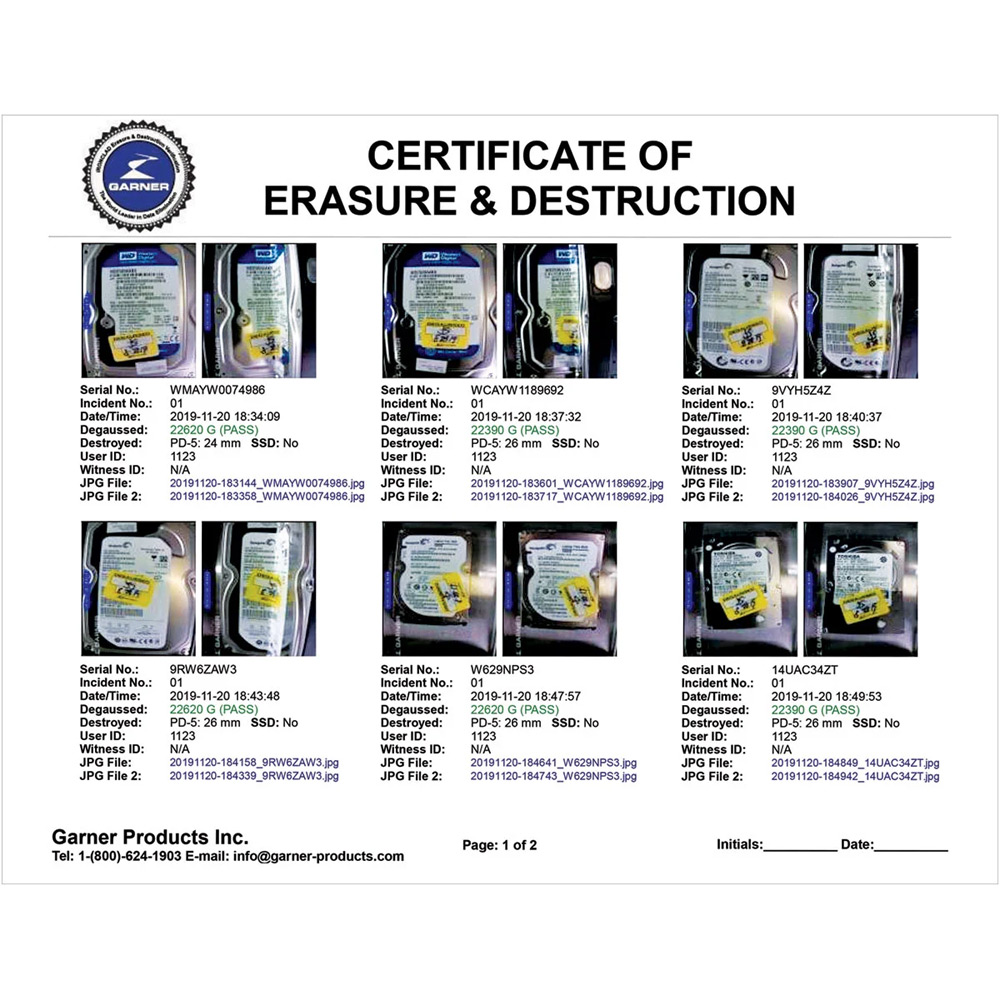

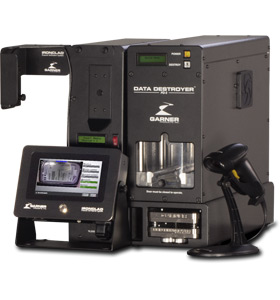

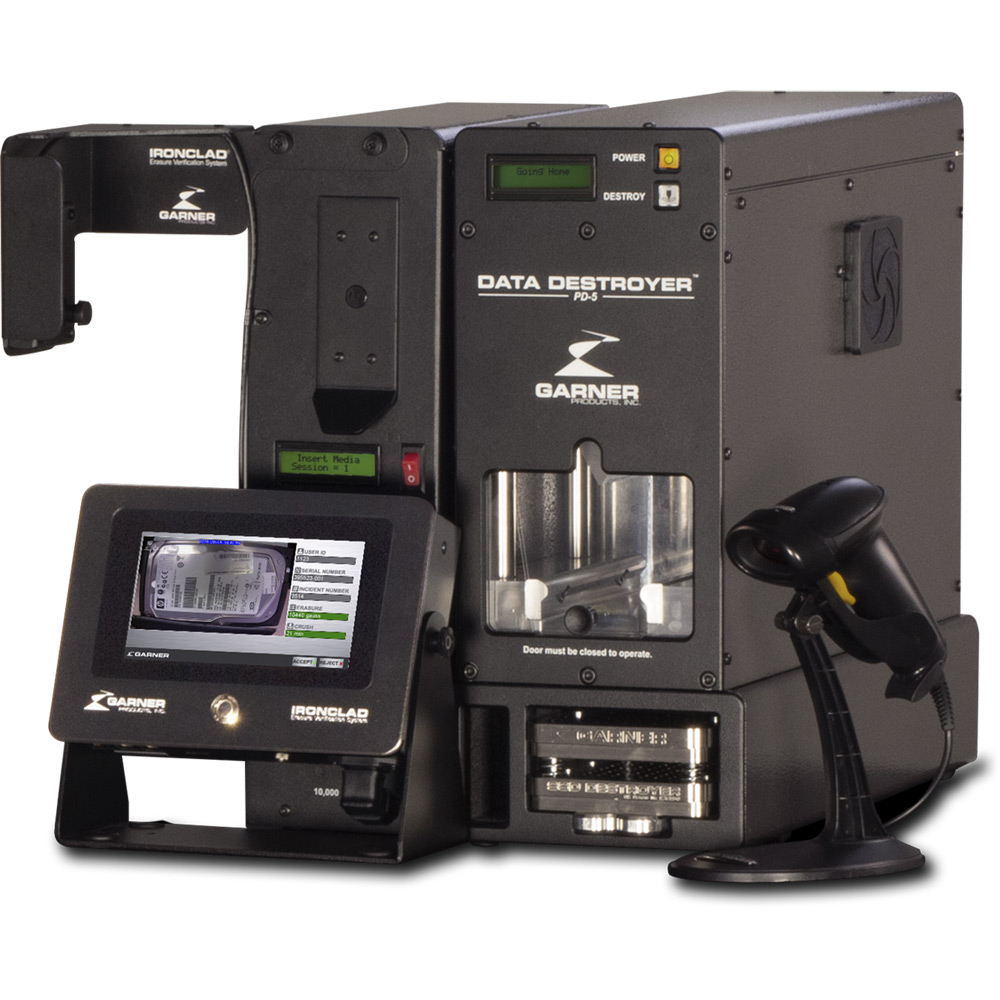

The SPACESAVER IRONCLAD package offers a complete and secure solution for hard drive and solid-state media destruction by combining the HD-2XTSSE degausser, the NSA EPL-listed PD-5E physical destroyer, and the SSD-1E solid-state destroyer. This powerful system provides full media erasure in under 8 seconds, followed by physical destruction in under 20 seconds, all verified by the exclusive IRONCLAD® Media Erasure and Destruction Verification System. Ideal for secure, compact office environments, the system generates a Certificate of Erasure and Destruction including audit-friendly reports for regulatory compliance.

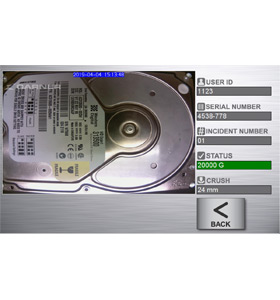

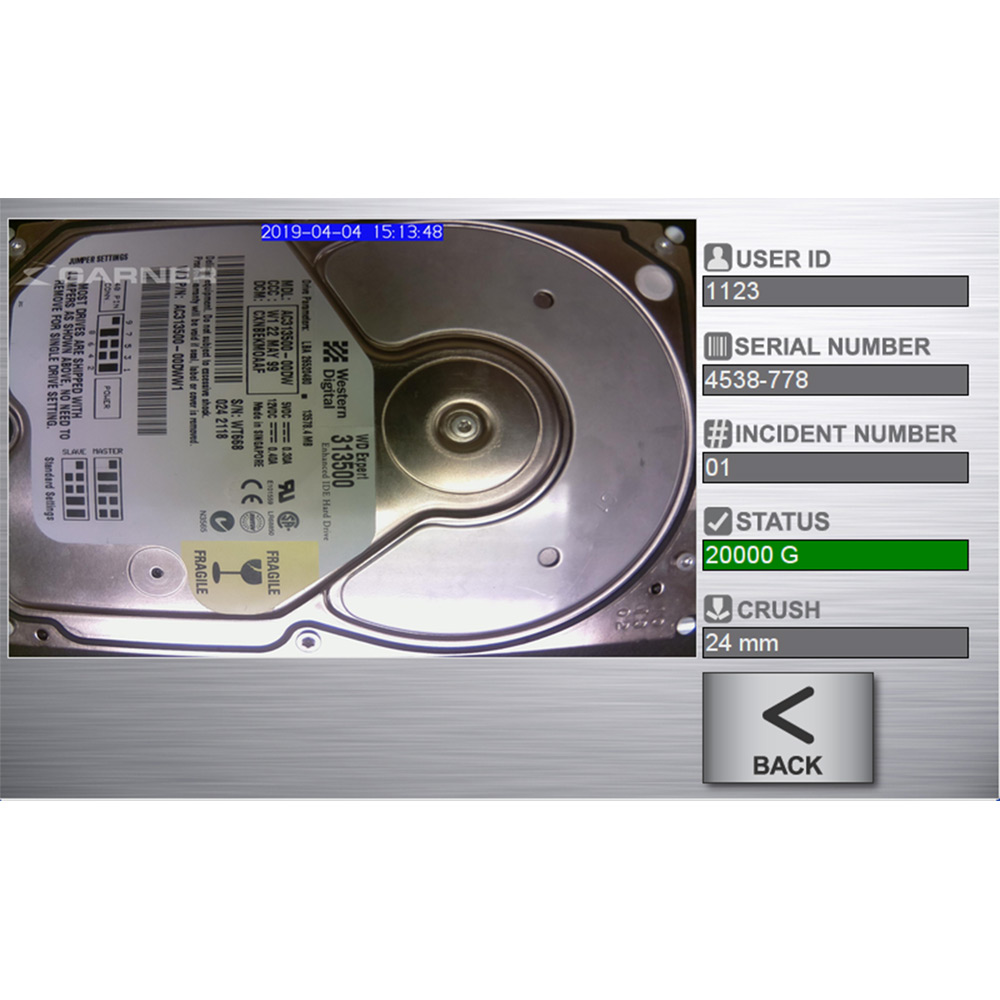

The IRONCLAD system automatically captures a JPG image of the hard drive immediately after degaussing and generates a proof-of-destruction certificate, including operator ID, witness ID, date, time, location, and serial numbers. Reports are exportable in PDF, CSV, and Excel formats, while the secure password-protected system records the gauss field strength of every degauss cycle and the crush depth of the PD-5E immediately after each cycle. It's operable in 2 modes: "Verification Mode" with prompts for new operators, and "Processing Mode" for faster handling.
Utilising 10,000+ gauss of magnetic force, the HD-2XTSSE degausser erases all data from hard drives and tapes within 8 seconds. This is immediately followed by the PD-5E's powerful crushing action with over 10 tons of force, bending and mangling hard drives beyond recovery. Solid-state media is securely destroyed by the SSD-1E, which uses 90 nickel-plated spikes to perforate and waffle the memory chips, making data recovery impossible. All devices operate from a standard wall outlet and are ETL listed, certified to UL, IEC, CSA, CE, KC and RCM standards, and are fully TAA compliant.
Best practices dictate that degaussing should always precede physical destruction. Degaussing using the HD-2XTSSE ensures that all data on the disc platters is permanently destroyed before any physical crushing takes place. This approach is far more secure than overwriting, as it eliminates the risk associated with faulty or incomplete overwrites and provides immediate, permanent erasure of all data. After degaussing the hard drives, physical destruction from the PD-5E provides visual confirmation that they have been securely processed and are safe to leave the secure environment.
It is important to note that while hard drives must be degaussed and then destroyed, solid-state media cannot be degaussed. Instead, physical destruction with the SSD-1E is recommended before media leaves its secure environment.
The SPACESAVER IRONCLAD system helps meet stringent data security standards, including CCPA, DoD emergency destruction, GDPR, GLBA, HIPAA, IRS 1075, NIST SP 800-88r1, PCI DSS 4.0, and PIPEDA. Garner Products leads the industry in product safety, with independent certifications confirming conformity to U.S. and international standards. All Garner products are ETL listed and certified to UL, IEC, CSA, CE, KC, and RCM standards, ensuring they are safe for operation in sensitive environments such as data centres, hospitals, and offices worldwide.
As a proud California-based manufacturer, Garner commits to sustainable practices at every stage of design, manufacturing, and shipping, ensuring all processes minimise environmental impact while delivering world-class data destruction technology.
Specifications | |
Name | Spacesaver IRONCLAD |
Manufacturer Code | SSC-25SSDE IRONCLAD |
Security | |
DIN 66399 Security Levels | H-3 |
Security Approvals | Meets GDPR, CCPA, DoD (below Top Secret), GLBA, HIPAA, IRS 1075, NIST SP 800-88r1, PCI DSS 4.0, and PIPEDA, and is TAA compliant and CE certified |
Capacities | |
Hourly Capacity | HD-2XTSSE: Up to 1920 (1.8"), or 960 (2.5"), or 240 (3.5") hard drives per hour, or up to 180 hard drives per hour with IRONCLAD. PD-5E: Up to 1,800 (2.5") or 360 (3.5") hard drives per hour, or up to 180 hard drives per hour with IRONCLAD. |
Specifications | |
Technology | PD-5E & HD-2XTSSE & IRONCLAD Verification |
Suitable For | Tape and Hard Disk Drives up to 3.5", also SSD, flash USB thumb drives, SSHD controller boards |
Technical | |
Cycle Time | 8 seconds (HD-2XTSSE) & 20 seconds (PD-5E) |
Duty Cycle | Continuous |
Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | HD-2XTSSE: 90~250VAC ±5%, 50/60 Hz PD-5E: 100~240VAC ±5%, 50/60 Hz IRONCLAD: 90~240VAC, 47-440 Hz |
Other Voltages | Power Consumption: HD-2XTSSE: During standby: 24W During charge: 156W At the time of erase: 60W PD-5E: During standby: 90W During crush: 1200W (max) IRONCLAD: 15W |
General | |
Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 460x594x459mm |
Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 65.9kg |
Warranty | |
Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 1 year |
Downloads | |
Buyers Guide | Download Here
![]() |
Specifications subject to change - See Terms & Conditions for more info
