JBF 35-50HD Flash 6mm Hard Drive Mobile Disintegrator
The Public Sector, Schools & Registered Charities can order online & receive 30 days instant credit - Read more here
Leasing Illustration - Example Only
This model could be available for £381.31 per week
Leasing Illustration - Example Only
This model could be available for £381.31 per week
Specifications
- Shreds Hard Drives to 5.5''and Magnetic Tapes (DLT, Ultrium, LTOs), Zip, Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, USB Sticks, Solid State, Phones and PDAs Separate cutting head for Small Media - Thumb Drives & SD Cards
- Up to 38 drives/hour
- Shreds up to 12kg per hour
- DIN Security Level: H-5
- 350x500mm Entry Throat (Hopper)
- Bin Capacity: 130 litres
- Dimensions (WxDxH): 1616x885x1615mm
Jump to: Full Product Info
Data Sheet
Interchangeable Screens - Adapting to Different Security Requirements
With JBF's interchangeable sizing screens, the final particle size can be adapted quickly to suit different security requirements. Each machine can be provided with your optimum set of screens, which can be swapped dependent on your security requirements for each product being destroyed. Swap to a finer or coarser screen to match the job without changing the cutting unit. Smaller screen holes give finer particles, and higher security, but at reduced throughput, while larger holes usually allow higher throughput where less stringent destruction criteria apply.
The JBF HD35/50 FLASH is designed to destroy a wide range of commonly used HDD, SSD plus smaller flash media. Without screens it provides basic industrial destruction, while fitted screens can reduce output size to as low as 3 mm in the main cutting unit and 2 mm particles in the flash cutting unit meeting stringent security requirements.
The sizing screen defines the maximum particle size leaving the disintegrator: material is cut repeatedly until it can pass through the screen holes. This provides a practical way to match output to different standards and security targets without changing machines. Because shred shape varies, hole diameter should be treated as a practical guide rather than an exact guarantee of final chip dimensions.
For high-security applications, a 3 mm screen can produce particles aligned with DIN 66399 levelsO5, T6, H6 and E5, depending on media category and configuration. To help reduce wear in demanding use, the screens are manufactured from wear-resistant HARDOX material.
Simple Operation with Built-In Safety
Operation is straightforward, with all push buttons, indicator lights, the emergency stop and the main on/off switch grouped in one central console. Electrical components such as contactors, overload protection switches, the emergency-stop relay, main switch, transformers and terminals are arranged within the central control cabinet. Machine functions are controlled automatically by a specially programmed Eaton easy PLC controller.
Designed with safety in mind, the cutter unit uses a feed lever to keep operation tidy and controlled. To process larger media, or multiple HDDs in parallel where appropriate, the hopper top cover can be lifted. For safety, a limit switch stops the shredder while the top cover is open, and also while the control cabinet door is open. The result is a high-capability destruction system with an operator-friendly workflow.
Optional Extras: Automated Proof of Destruction: Conveyor System with Photo & Barcode Logging
Optional Extras and Workflow Upgrades
These models can be specified with a range of optional extras to improve automation, operator convenience, dust control and auditability.
Automated feed conveyor and proof-of-destruction workflow
For higher-volume HDD destruction, an optional mobile feed conveyor can be fitted to automate feeding up to 15 x 3.5" hard drives or 30 x 2.5" hard drives into the main cutting unit. The conveyor feed interval can be adjusted to suit the media type and screen fitted, helping reduce the risk of overfeeding or jamming.
Photo & barcode logging
An optional camera and scanner arrangement can support an auditable destruction process by photographing each drive and recording barcode data before destruction. Details can be captured directly to a connected laptop folder while also saving the barcode into a text file for later use in destruction records.
Additional Extras Include
- Collection bins or boxes for convenient handling of shredded particles
- Assembly aid for screens to simplify screen changeover
- Vacuuming hopper with 40 mm port to connect a suitable vacuum cleaner (can be bolted into flash screens)
- Discharge conveyors, dust extraction devices and other customisations available on request
Understanding Security Levels (DIN 66399 ISO/IEC 21964) and Compliance
Security standards and compliance (DIN 66399)
The JBF 38-50HD-6 contains a single cutting unit evaluated by CPNI / NPSA. The 35-50HD FLASH model uses the same machine format and main cutting system as the 38-50HD-6 model and has an added separate FLASH cutting unit for SSDs, USB sticks, SD cards and similar smaller media.
Security levels depend on the media category and the screen fitted.
Main cutting unit (HDDs and larger media) - Without screen: DIN 66399 T1 / H4 / E2, and with screen: depending on screen size and media type, these models can achieve up to O5 / T6 / H7 / E5
For the 6mm HDD configuration shown above, the main cutting unit is aligned with DIN 66399 H-5, meeting NPSA government guidelines
Auxiliary cutting unit for Flash media (35/50 Flash only) - Without screen: DIN 66399 F1 / O3 / T4 / E3, and with screen: up to F4 / O6 / T7 / E5, depending on screen fitted and media processed
It is important to note that if your application requires evidence of specific security standards, you should request the relevant detail and supporting documentation from your chosen security advisors as part of your evaluation and purchase process.
For more information on DIN 66399 Security Levels, please see our Security Levels explainer page.
Why Shredding Flash & SSD Media Matters
Flash and SSD media may be small, but they can contain an enormous amount of private, business, or confidential information. When devices are retired, returned from lease, resold, or fail, that data still needs to be securely eliminated to meet security policies and regulatory expectations. While certified overwriting can work on functioning devices, it's often time-consuming at scale - and for damaged or non-operational media it may not be possible at all. Physical shredding removes the risk of data recovery by destroying the storage chips and components directly. It's also important to note that Flash-based media cannot be degaussed like magnetic drives, so "erase by degaussing" isn't an option. For organisations that need a clear, dependable end-of-life process, shredding is the most reliable route to true data destruction.
Product Details
JBF 35/50 HD FLASH Mobile Hard Drive and SSD Shredder
Just as confidential paper records must be destroyed properly once they are no longer needed, digital storage media must also be destroyed correctly at end of life. Hard drives, SSDs, USB sticks, SD cards and similar devices can retain highly sensitive business, central and local government and military information long after they have been removed from service. In commercial, government and defence environments, improper disposal creates an avoidable security, compliance and reputational risk.
The JBF 35/50HD FLASH is a dual-cutting-unit media shredder built for secure, on-site destruction of mixed data media. It combines a dedicated hard drive cutting unit with a separate flash-media cutting unit for SSDs, USB sticks, SD cards and similar small media, allowing the cutting geometry and screen configuration to be matched more closely to the media destroyed. It is well suited to Defence, Police, secure ITAD and other high-security environments where chain of custody, compliance and on-site destruction matter.
Key reasons buyers choose it
- Two cutting units in one machine - one for HDDs and larger media, one for flash media
- Configurable output size and security level via exchangeable screens on both cutting units.
- Designed to pass through 900 mm / 36" office doors for easier siting
- Single 400V 3-phase supply and one main drive powering both cutting units
- Options for fixed installation or mobile deployment, including track installation and PTO drive arrangements.
- Optional upgrades to support cleaner operation, easier handling and auditable destruction workflows
Security standards and compliance (DIN 66399)
Security levels depend on the media category being destroyed and the screen fitted.
Main cutting unit for HDDs and larger media
- Without screen: DIN 66399 T1 / H4 / E2
- With screen: up to O5 / T6 / H7 / E5
- Without screen: DIN 66399 F1 / O3 / T4 / E3
- With screen: up to F4 / O6 / T7 / E5
The JBF 35-50HD FLASH uses the same machine format and main cutting system as the original JBF 38-50HD-6 model historically evaluated by CPNI / NPSA, with the addition of a separate FLASH cutting unit for SSDs, USB sticks, SD cards and similar small media. In practical terms, it is the same proven core machine platform, enhanced to allow secure destruction of both larger magnetic media and smaller electronic media within one integrated system. Where a particular standard, screen configuration or evaluation status needs to be evidenced for a specific application, customers should request the relevant supporting advice and documentation from their own security team as part of the quotation process.
Two cutting units for mixed media destruction
Main cutting unit: Wide feed hopper for HDDs and larger format media, including standard 2.5", 3.5" and 5.25" hard drives, optical media, tapes and certain other larger data media with rugged knife set intended for heavier items and mixed loads

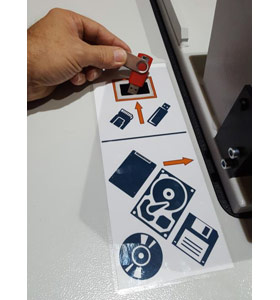

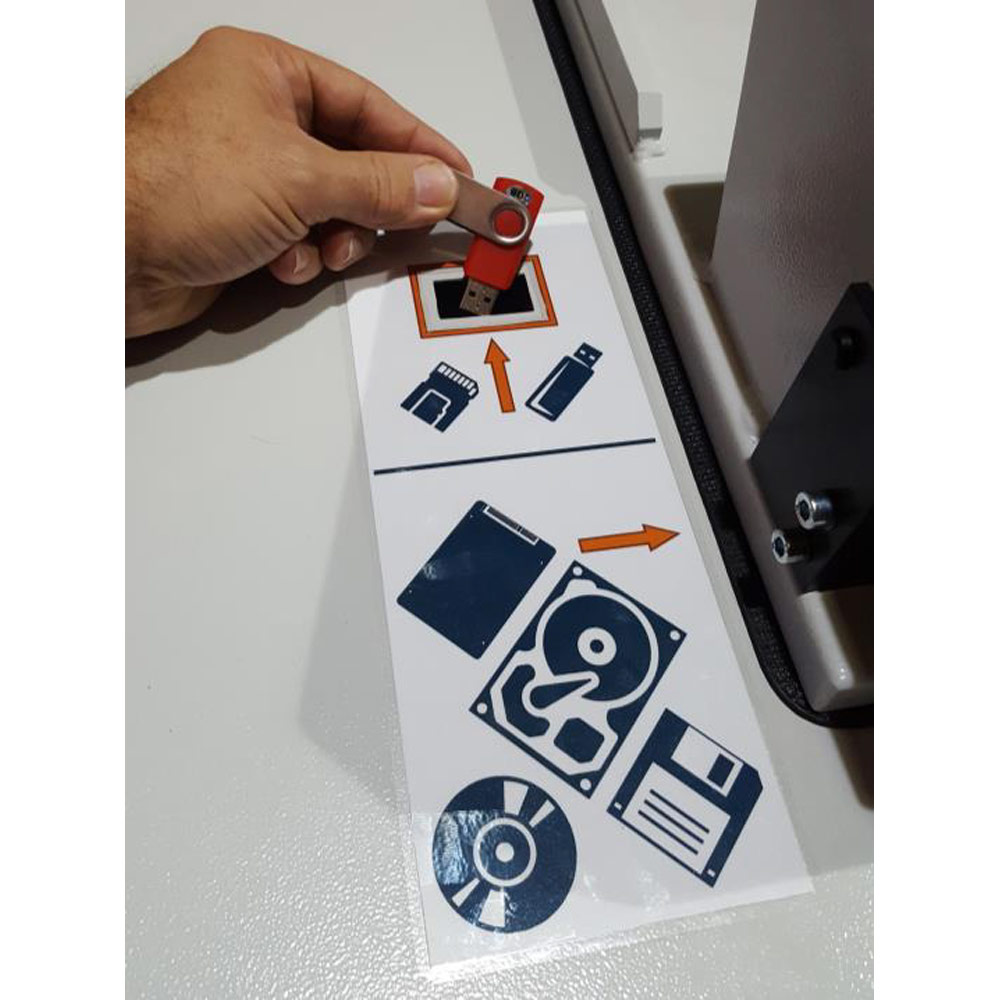

Auxiliary FLASH cutting unit: Separate feed hopper dedicated to smaller FLASH media such as SSDs, thumb drives, SD cards and similar devices, with slimmer knife geometry intended for smaller media and finer output sizes

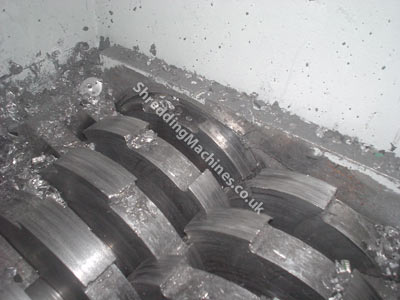

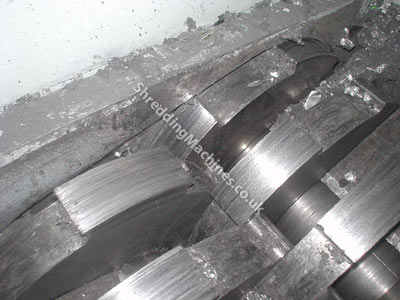

The standard machine is typically supplied with a 31 mm knife set in the main cutting unit and a 5.8 mm knife set in the FLASH cutting unit. Customers then choose from a range of optional granulating screens at additional cost, with the mesh aperture of the screen defining the approximate particle size and security outcome required for the application.
Typical Throughputs
Both cutting units can be fitted with their own exchangeable screens to adapt output size and security class for each application. As a rule, smaller screen apertures produce finer particles and higher security, but at reduced throughput. The JBF 35-50 FLASH delivers impressive throughput performance across a wide range of media types, with output levels influenced by the screen fitted, the size and weight of the media, loading consistency, and the condition of key wear components within the machine. As a rule, larger screens provide higher throughput rates, while smaller screens produce a finer particle size for higher security applications.
All quoted throughput figures should be treated as practical guide levels based on internal testing, with actual performance dependent on the operator’s material and working conditions. This gives users the flexibility to balance throughput and particle size according to their operational and security requirements.
For customers looking to maximise output, particularly when processing HDDs and SSDs through higher security screens, throughput can often be improved by removing platters from the outer casings and shredding them separately. This helps improve processing efficiency, supports more consistent performance, and allows the machine to deliver stronger results in demanding applications.
Main Cutting Unit: 3.5" - HDD up to 520g
- 14mm screen: 1 HDD every 60 sec = 60 per hour
- 10mm screen: 1 HDD every 135 sec = 26 per hour
- 3mm screen: 1 HDD every 20 min = 3 per hour
FLASH Cutting unit - SD cards up to 2.5g
- Without screen: 12 every 5 sec = 8,640 per hour
- 5mm screen: 10 every 20 sec = 1,800 per hour
- 2mm screen: 1 every 55 sec = 65.5 per hour
FLASH Cutting unit - Pen drives up to 15g
- Without screen: 2 every 5 sec = 1,440 per hour
- 5mm screen: 2 every 30 sec = 240 per hour
- 2mm screen: 1 every 6 min = 10 per hour
FLASH Cutting unit - SSD drives up to 70g
- Without screen: 1 every 15 sec = 240 per hour
- 5mm screen: 1 every 65 sec = 55 per hour
- 2mm screen: 1 every 30 min = 2 per hour
If you have a specific media mix, such as a high proportion of SSDs, or a mandated output size, we can advise on the most suitable configuration.
Important throughputs note: Smaller screen sizes reduce throughput and increase shredding time per item. Feed rate may also need to be reduced to avoid overloading, jamming or overheating. Published throughput figures are approximate guide values only and actual output will vary depending on media type, size, weight, construction, platter count, caddies, screen size fitted, cleanliness, feed rate, cutter age and operating conditions. Please refer to machine Operating Instructions for more details.
Deployment options - static or mobile
The JBF 35-50 FLASH offers exceptional deployment flexibility and can be supplied either as a permanent fixed installation or as a fully mobile solution. Mobile configurations can be built for truck or van mounting, with a hydraulic main drive option available for PTO operation where required, making the system ideal for on-site destruction and rapid response applications.
For more demanding or specialist requirements, bespoke solutions can also be developed, including containerised systems for operation in remote or hostile environments, and high-security installations for embassies, government premises and other sensitive locations.
This flexibility allows the JBF 35-50 FLASH to be tailored to operational, security and logistical requirements where resilience, mobility and business continuity are critical.
Accessories and operator upgrades
Common options include:
- Automated feed conveyor for HDDs (main cutting unit) so the operator can load media and let the machine run
- Collecting bins or boxes for convenient collection and handling of shredded particles
- Assembly aid for screens to simplify screen changeover
- Vacuuming hopper with 40 mm port to connect a suitable vacuum cleaner (can be bolted into flash screens)
- Discharge conveyors, dust extraction devices and other customisations on request
- Audit trail options to support proof-of-destruction workflows (speak to us about what you need to capture and report)
Technical specification (headline)
- Power supply: 400V / 50Hz / 3-phase (other voltages on request)
- Main drive: 5.5 kW
- Cutting zones: 350 x 500 mm (main) and 100 x 500 mm (auxiliary)
- Dimensions: 1,616 x 885 x 1,615 mm (H)
- Weight: approx. 1,200 kg
- Collecting volume: 130 litres
Important operating notes
Please always refer to the Operating Instructions supplied with the machine. The operating manual should be kept readily available at the machine at all times, and all staff should be trained and instructed before operating, cleaning or maintaining the unit. The manual also requires the operator to use the machine in full compliance with the operating instructions and to maintain it correctly.
Use the correct hopper for the correct media. The auxiliary cutting unit is intended for FLASH media, while HDDs and other larger magnetic media should be processed through the main cutting unit.
Correct routine maintenance by the operator is vital for safe operation, reliable throughput and protection of the machine, with screen cleaning being particularly important. The operating manual states that the shredding unit must be cleaned at least once a week and that magnetic parts must be removed manually from the machine and screens weekly, or earlier if throughput capacity drops, as these parts can block the screen and may cause serious damage if not removed on a regular basis. Before cleaning, the main switch must be turned off and secured so the machine cannot be switched back on. When cleaning screens, magnetic build-up should be removed carefully with suitable tools and screen holes unblocked without damaging the screen.
Batteries must be removed from devices before shredding, especially lithium-ion batteries, to reduce fire risk.
Hardened metal objects must never be fed into the machine, as this can permanently damage the cutting knives and associated parts. The cutting system is manufactured from specialist hardened steel components and, in certain circumstances, cutters or knife shafts may be individually changed and re-sharpened. In some cases, as specialist workshop equipment may be required and the cutting assembly, or in some cases the machine itself, may need to be removed from site for repair at the JBF facility at the customers expense.
A suitable annual preventative maintenance contract from installation by a trained engineer is strongly recommended. The operating manual states that the unit should be placed under a suitable annual preventative maintenance contract from new or the warranty may be void and also recommends at least bi-annual service check by a trained person.
FAQs
Does it shred both HDDs and flash media?
Yes - it is built with two separate cutting units, one aimed at HDDs and larger media and one for smaller flash media such as SSDs, thumb drives and SD cards.
Can it be installed on a truck?
Mobile deployment is supported via custom chassis options, with a hydraulic main drive option available for truck PTO installations.
Will it fit through a standard doorway?
Yes - it is designed to pass through 900 mm / 36" office doors.
Warranty Terms
Standard warranty is 1 year from date of delivery for non-wear and tear parts in a one-shift operation or 2,000 working hours. Normal wear and tear of the knives and screens is excluded from the warranty and is subject to the manufacturers operating instructions. Inappropriate use of the machine would include but is not limited to improper installation, commissioning, set-up, operation or servicing of the machine. The machine was designed for safe operation by trained and instructed staff only and is not designed to be used by children. No other work may be performed on the machine during cleaning or servicing. The warranty will be void in the event of incorrect installation, start-up, set-up, maintenance; unauthorised physical/structural modification of the machine; unauthorised intervention into the control system; emplacement and use of unapproved components and spare parts; faulty repairs by non-trained and authorized personnel.
This shredder conforms to NPSA (formerly CPNI) guidelines to shred:
| Specifications | |
| Name | 35-50HD Flash 6mm Hard Drive Mobile Disintegrator |
| Security | |
| Shred Size: | 6mm Security Particles |
| DIN 66399 Security Levels | H-5 |
| Security Level: | Highest |
| Capacities | |
| Hourly Capacity | 12kg per hour |
| Capacity | Up to 38 drives/hour |
| Specifications | |
| Throat Width | 350x500mm Entry Throat (Hopper) |
| Shreds | Hard Drives to 5.5''and Magnetic Tapes (DLT, Ultrium, LTOs), Zip, Optical Media (CDs/DVDs, Blu-ray), Credit and Identity Cards, USB Sticks, Solid State, Phones and PDAs Separate cutting head for Small Media - Thumb Drives & SD Cards |
| Waste Bin | |
| Bin Capacity The number of shredded sheets that can collect in the waste bin before requiring emptying is provided for guidance purposes only. It may be necessary to push shreds down to reach capacities, and can be subject to many factors including the type, weight, size and age of paper being shredded. | 130 litres |
| Extra Media Waste Bin | N/A |
| Technical | |
| Motor | 5500 watts |
| Continuous Run Time The Continuous Run Time of all shredders are to be used as guidance only and are normally only achievable in ideal situations. Run times can be dependent on operator usage, the age and condition of machines, how regularly cutters are oiled, the type and quality of paper used etc. | 24 hours |
| Motor Cool Down Time Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | N/A |
| Voltage Cycle (v/Hz) Please note that the details supplied are for indication only and may change slightly due to manufacturers processes or improvements. If the precise figures is critical for your specific use case, we recommend contacting our customer support team for more detailed information. | 400/50 3-phase |
| General | |
| Dimensions (WxDxH) Please note that the product dimensions provided on this website refer to the main product size and may vary slightly due to manufacturing processes. The measurements represent the core dimensions of the product and do not include any extensions or attachments, such as electrical plugs, cables, or other accessories unless explicitly stated. | 1616x885x1615mm |
| Weight Please be aware that the product weights provided on this website are approximate and are intended to give you a general idea of the item's weight. The stated weight represents the primary product without including any additional accessories, attachments, or packaging, unless explicitly mentioned. | 1200kg |
| Warranty | |
| Machine Warranty Goods are generally covered by the standard manufacturer's warranty which is available on request. Goods must have been purchased from new by its first user, and a dated receipt, email confirmation or invoice must be provided as proof of purchase. If goods are replaced during the warranty period only the unexpired term of the original warranty is valid and transferred to the replacement product. | 1 year |
| Downloads | |
| Buyers Guide | Download Here
 |
Specifications subject to change - See Terms & Conditions for more info
